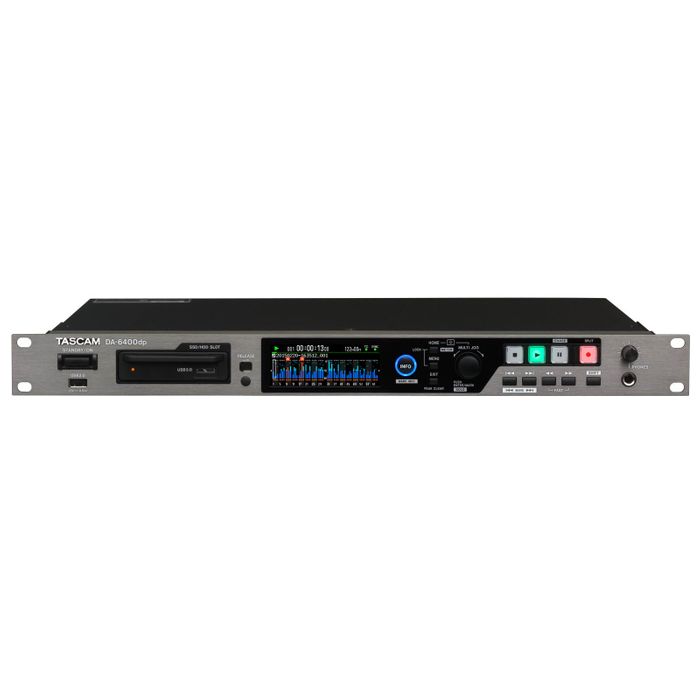

Tascam DA-6400DP 64-channel Digital Multitrack Recorder
Description
DA-6400dp 64-Track Audio Recorder for Live and Broadcast Applications
The DA-6400dp is a universal recording system capable of capturing up to 64 audio tracks from a digital audio workstation or live mixing console. It can be expanded with various interface boards, such as MADI, Dante, AES/EBU and ST 2110, to integrate seamlessly into virtually any recording environment.
This standalone audio recorder uses a dedicated real-time operating system and robust SSDs as storage media, has a redundant power supply, and offers many other professional features for unrivalled stability and exceptional audio
Embedded Operating System for High Stability and Simple Standalone Operation
The DA-6400dp uses an embedded operating system to enable quick start-up and simple operation. This ensures stable recording when using high sampling rates with large amounts of data transmission.
Furthermore, files are saved approximately every 20 seconds during recording, minimising the risk of loss due to unexpected interruptions.
Recording/Playback of 64 Tracks at 48 kHz or 32 Tracks at 96 kHz
The DA-6400dp supports PCM recording/playback from 48 kHz to a maximum of 96 kHz for compatibility with existing recording studio systems, PA systems and other recording situations where high sampling rates are utilised.
At 96-kHz/24-bit resolution, 32 tracks are available.
Fast and Reliable Recording Using SSDs
The DA-6400dp uses solid-state drives (SSD), which offer excellent resistance to vibrations and environmental influences and enable simple, maintenance-free operation.
Installing SSDs into removable AK-CC25 storage cases makes it easy to switch between multiple drives. Since the DA-6400dp is hot-swappable, the SSDs can be removed and loaded even when the power is on. SSDs stored in AK-CC25 cases can be connected to computers via USB and used as external drives.
Stable Digital Signal Control With 1 ppm Accuracy
As the quality of digital signals relies on the performance of the clock generator, the DA-6400dp uses a temperature-compensated crystal oscillator (TCXO) with a precision of ±1 ppm (0.048 Hz at 48 kHz).
Key Features:
• Supports recording/playback of 64 channels at 48kHz/24-bit or 32 channels at 96kHz/24-bit PCM
• AC power redundancy built in (DA-6400dp only)
• Cascade connection of two units enables playback and recordings of up to 128 channels (supported with V2.10)
• Playlist and Theater play function (supported with V2.00)
• 2.5-inch SSD recording media with excellent vibration and environmental resistance as well as maintenance-free operation. (Note: HDD support currently under development)
• AK-CC25 with TASCAM 240GB SSD drive included with unit
• Hi-visibility Color LCD (320 × 120 pixels)
• Two I/O slots for optional audio interface cards
