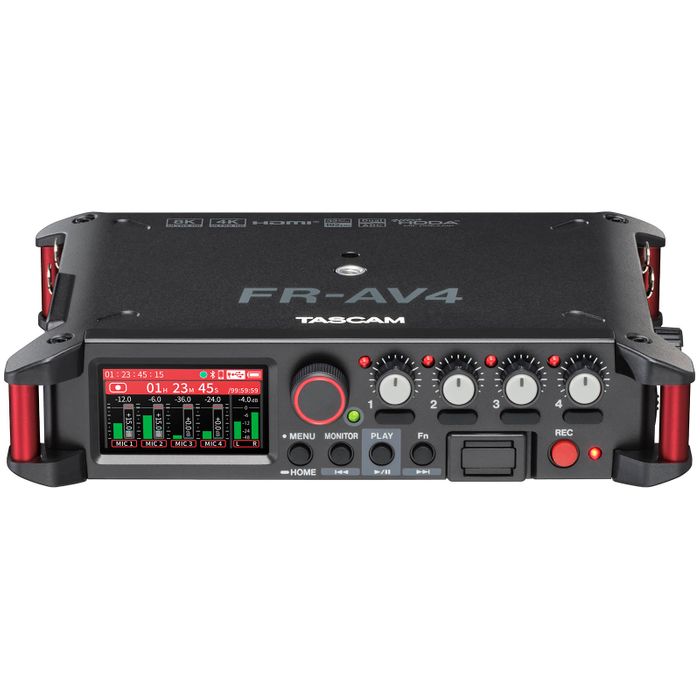

Tascam FR-AV4 32-Bit 4-ch Recorder
Description
FR-AV4 - 32-Bit Float 4-ch Field Recorder with Mixer, Timecode Generator and HDMI Sync
The TASCAM FR-AV4 is more than just a 4-channel field recorder - it’s an essential audio solution for videographers, content creators, and audio professionals. With dual AD converters, Ultra HDDA low-noise microphone preamps, and 32-bit float recording, the FR-AV4 captures every nuance, from the quietest of whispers to the largest explosions, all with crystal clarity and no fear of clipping. With its built-in timecode generator and HDMI sync to firmly lock audio to video, this compact and rugged recorder is the ideal solution for videographers and sound designers in any environment. When there’s no second take, the FR-AV4 delivers.
Professional-Grade Audio Fidelity in Any Environment
Dual AD converters and 32-bit float recording, capture every detail with over 133dB of dynamic range and zero clipping. Each of the four XLR/TRS combo inputs features low-noise TASCAM Ultra HDDA preamps (EIN -127dBu), delivering pristine clarity - even in the most unpredictable environments.
Industry-Leading Recording and Mixing Technology
Record a full multi-mic setup with confidence. The FR-AV4’s built-in mixer offers 4-in/2-out flexibility while simultaneously capturing all four channels - plus a stereo mix - for 6-track recording directly to SDXC media.
Stay in Sync, Wherever You Shoot
The FR-AV4's built-in timecode generator ensures solid sync across your entire setup—no additional gear required. It offers a wide range of timecode sync options, including HDMI I/O, dedicated 3.5mm TC I/O, a 3.5mm camera TC out, and wireless sync with Atomos via Bluetooth (optional AK-BT2 adapter required). With these features, the FR-AV4 integrates seamlessly into any video workflow.
Rugged, Portable and Production Ready
Tough enough for demanding shoots, but compact enough for small mobile setups, the FR-AV4 is ideal for creators on-the-go. Its lightweight aluminum chassis is built to follow wherever your project leads you - be it in the studio, on location, or in the field.
Pro-Grade 32-Bit Float Audio Interface
The FR-AV4 doubles as a 6-in/2-out USB-C audio interface for Mac, Windows, iOS and Android devices - delivering the same massive dynamic range and no-clip recordings you get on location.
Shoot Smarter with HDMI-Based Sync
Works with Blackmagic, Canon, Fujifilm, Nikon, Panasonic, Sony, and many other cameras via HDMI, syncing audio and video with precision using a shared master clock and timecode. Record trigger functionality allows you to start and stop audio recording directly from a supporting camera - no extra steps, no worry of missed takes. With full 4K/8K video pass-through and embedded multi-channel audio support, the FR-AV4 effortlessly integrates with monitor recorders such as Blackmagic and Atomos. Need even more channels? Expand your setup with a second unit via HDMI for up to eight simultaneous inputs.
Key Features:
• 133dB wide analog dynamic range with dual AD converters and 32-bit float recording
• Ultra-low noise preamps (Ultra HDDA / EIN -127dBu) on all four XLR/TRS combo inputs ensure crystal-clear sound capture
• Mix up to four inputs to two outputs using the built-in mixer
• Record six tracks (four tracks + stereo mix) to an SDXC card
• Built-in timecode generator, HDMI and 3.5mm stereo mini jack Timecode In/Out, USB Timecode Out and Atomos Bluetooth sync
• Enables precise AV sync via HDMI clock, along with cascade and record trigger control, supporting 4K/8K video pass-through
• A portable, lightweight, and slim design—ideal for portable use, mobile recording, and studio production
• Wireless audio monitoring *
• App control via TASCAM RECORDER CONNECT*
