Hear Technologies PROHBMDO Hear Back PRO Mixer with Digital Overlay
Description
This configuration of the Hear Technologies Hear Back PRO Mixer includes the PRO Digital Overlay preinstalled on the faceplate of the mixer, upgrading the interface with easy-to-read OLED digital labeling.

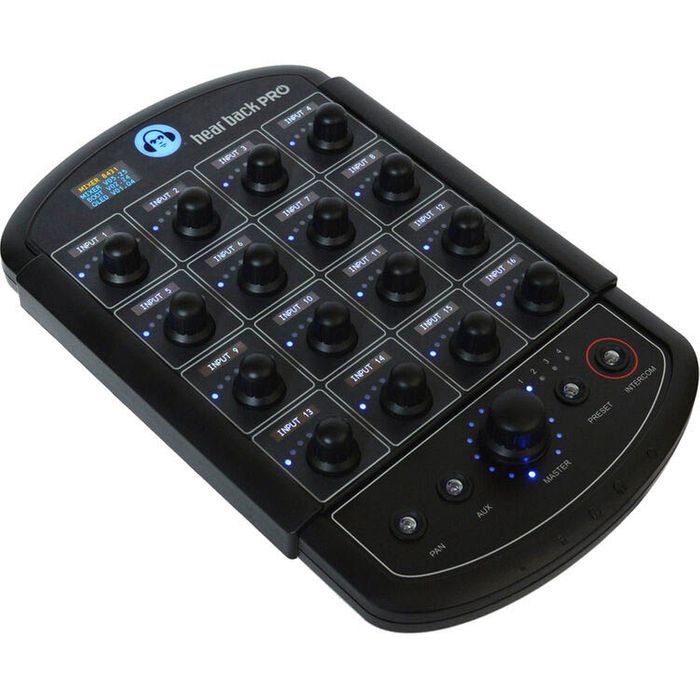

Hear Technologies Hear Back PRO Personal Monitor Mixer for Hear Back PRO Hub
The Hear Technologies Hear Back PRO Mixer is a personal monitor mixer designed to provide simple multi-source mixing and low system latency for musicians, vocalists, and various performers in recording studios, rehearsal spaces, and live stage applications. It receives power and signal via a Cat6e connection to a Hear Back PRO Hub (available separately) and features an integrated 5/8”-27 threaded socket for easy mounting to a mic stand. Store and recall up to four presets to instantly reconfigure mixer settings for different monitoring scenarios.
The 18-channel mixer accepts 16 channels via Cat6e and two channels via the 3.5mm stereo aux input jack. Adjacent mono channels can be linked for true stereo operation. Connect an external mic to the XLR 3-pin jack, then use the built-in intercom function to communicate to other connected Hear Back PRO Mixers. Volume and pan is adjustable for each channel and a dedicated master output knob allows for quick control of the headphone level. 24-bit A/D and D/A conversion delivers high-quality signal to the 3.5mm and 1/4" stereo headphone jacks and the two 1/4" balanced line outs.
Hear Technologies PRO OLED Digital Overlay for Hear Back PRO Mixer (Single)
Upgrade your Hear Back PRO monitor mixers with OLED-screen electronic labeling with this PRO Digital Overlay from Hear Technologies. Less than 3mm thick, each overlay installs right on the mixer face and connects to the mixer's expansion port via ribbon cable, providing neat labeling of the channels and mixer functions. The overlay's bright OLED displays are easy to see in the studio or during live performances. Naming functions are done remotely using the iOS app or a computer.
Key Features:
• Mixer for the Hear Back PRO personal monitoring system
• Hear Back PRO Digital Overlay upgrades your Mixer with high-contrast graphical displays
• Supplies local control of up to 138 channels of audio: 128 mono channels, a stereo auxiliary input, and up to 4 stereo Intercom inputs
• Submix up to 16 stereo channels on each of the unit's 16 knobs
• Master Volume, Pan, and Stereo Link control over all channels
• Allows remote control of all settings from another Mixer
• Receives both power and audio over a single Ethernet cable via a Hear Back PRO Hub
• Top-shelf sound with 24-bit Delta-Sigma AD/DA converters
• Up to 4 recallable Presets for instant switching between configurations
• Intercom feature allows you to communicate with up to 4 people simultaneously
• 2.2W headphone outputs and balanced line-level outputs ensure premium sound
• 1/8-in. stereo TRS unbalanced and XLR mono balanced auxiliary inputs for audience mics, a drum module/metronome, or a local mix input
• Optional PRO Digital Overlays with OLED graphics provide electronic channel labeling and Mixer status (sold separately)
• Built-in standard mic stand mount makes installation easy
