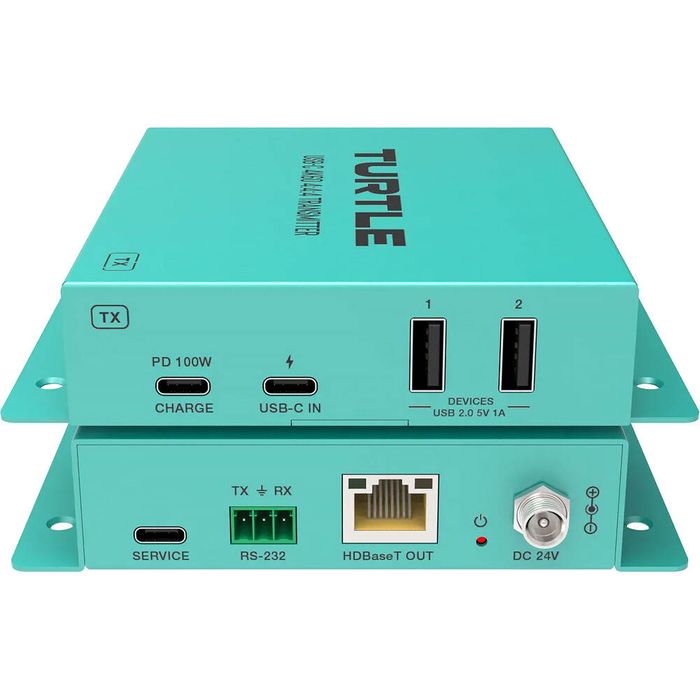

Turtle AV USB-C 4K60 Video and USB 2.0 Extender Kit
Description
USB and 4K60 video. From here to over there.
The Turtle AV USB Extender Kit pushes the boundaries of connectivity, delivering high-speed USB and uncompressed 4K60 video in a single, compact solution. Whether it’s a full-scale AV install or smaller BYOD meeting spaces, this kit has you covered:
• 4K60 (4:4:4 8bit) video and USB 2.0 signals up to 130 feet / 40 metres
• 4K30 (4:4:4 8bit) video and USB 2.0 signals up to 230 feet / 70 metres
• High Dynamic Range pass through
• 100W USB-C PD port for charging
• Power over Cable (PoC) for simplified installs
• API control for advanced system integration
• Plug-and-play compatibility with universal device support
• Subframe latency over a single CAT cable
• Audio pass through
BYOD rooms, meet your new BFF.
Send 4K60 video input over USB-C from laptops, and other devices over CAT6/6a/7 cable and output via HDMI 2.0b to screens.
Subframe latency.
Your video meetings will be natural with almost zero latency between the USB Extender Tx and Rx.
o long. Or go longer.
4K60 goes long. 4K30 goes longer. Whichever you choose the video is in 4:4:4 so your computer screen looks perfect on the big screen.
The PD power pass through allows for an external USB power brick up to 100W to pass through power to the USB-C video connection, delivering power the device that’s plugged in. No more panic moments worrying about your device’s power, instead you can worry about how much coffee you need for those looooong meetings.
Tx & Rx? Host & Device? Both.
The Turtle AV USB Extender kit with 4K60 video is truly a product marketers’ worst nightmare. It’s a Tx and Rx set up for video, whilst being a Host and Device set up for USB 2.0 extension.
Power over Cable. POC.
Powering the actual units is super easy with PoC. Simply power either end and it will power the other unit over the CAT cable. That’s why we only included one power supply.
High Dynamic Range.
Passes through High Dynamic Range (HDR) formats, including HDR10, HDR10+, Dolby Vision, and HLG.
Audio pass through.
LPCM 2.0/5.1/7.1CH, Dolby True HD, Dolby Atmos, DTS-HD Master Audio and DTS:X are all supported.
RS-232.
RS-232 signal pass-through supported for seamless control integration with third-party systems.
Key Features:
• Supports 4K60 Video
• High-Speed USB and Uncompressed Video
• 100W PD Charging Port
• USB-C and USB-A Connectivity
• Audio Pass-Through
• PoC Powered
