Midas HUB4 PRO Monitor System Hub 48/96Khz
Description

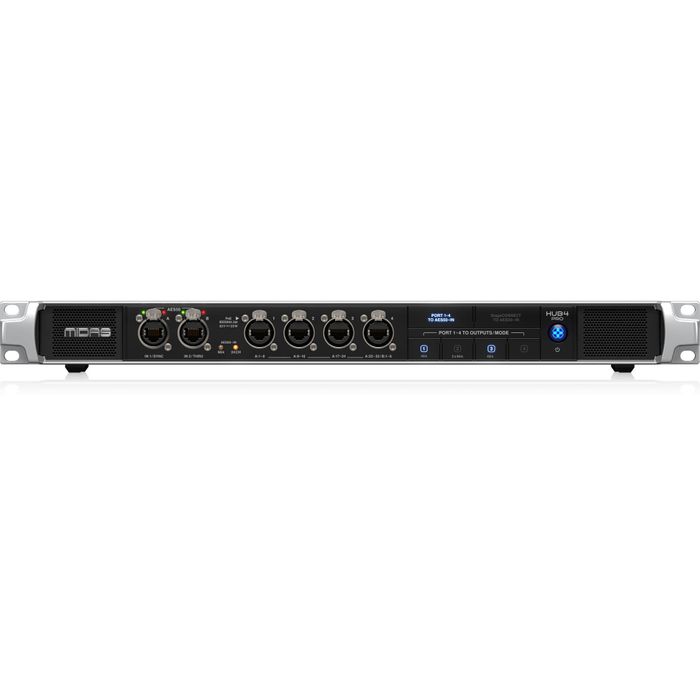

HUB4 PRO
The HUB4 PRO is the essential multi-tool in any stage rack, providing analogue and digital outputs for various applications and offering reliable performance for seamless integration into diverse audio setups.
The HUB4 PRO allows a more streamlined and customisable monitoring experience, with front panel buttons and 16 balanced analogue outputs for sending 4x2 personal stereo mixes from DP48 to IEM transmitters in the side rack. It also allows collecting audio from 4 of the brand-new Midas DL8 Stage Box, which can be connected and powered from ports 1-4.
Ensuring reliable connections is key for the transmission of multiple channels in any setting, the HUB4 PRO features industry-standard RJ45 AES50 network ports and remote operation via shielded CAT5e cables. With a versatile and adaptive power supply, the HUB4 PRO can be used globally, and it has a rugged 1U chassis making it extremely durable for travel.
Personal Monitoring with DP48
HUB4 PRO can supply up to four DP48 personal monitor mixers with PoE (Power over Ethernet) and 48 channels of 24-bit/48 kHz audio or 2x 24 channels at 96 kHz. HUB4 PRO also collects 48 channels of upstream audio and forwards this audio to the FOH console, either from stage boxes connected to the AES50-B (THRU) Port or 8 return channels from each of Ports 1-4.
Cascading Hubs for Large Setups
To meet the challenges of large monitoring setups, HUB4 PRO can easily be daisy-chained to make additional DP48 ports available, all the way up to symphonic orchestra applications.
On the other hand, HUB4 PRO can also address situations where you want to connect additional I/O via the same AES50 link to the mixing console. To help build out this AES50 console link, digital stage boxes such as the Midas DL16 or DL32 can be connected to the HUB4’s AES50 (THRU) Port. The console can pass downstream signals to their respective stage outputs, while also receiving 48 channels upstream from the stage inputs via HUB4 PRO.
Key Features:
• Personal monitoring system hub with PoE remote powering for 4 DP48 personal mixers and compatible stage boxes
• AES50 IN and THRU ports for cascading hubs or stage boxes with 48 bidirectional channels at 48/44.1 kHz, or 2x 24 channels at 96 kHz
• 16 balanced analogue outputs providing 8 personal stereo mixes for IEM transmitters in a side rack
• Channel naming and color properties can be distributed from compatible M32 or HD96 consoles
• 4 Midas DL8 stage boxes can be connected as sub-snakes on stage and powered from ports 1-4
• Personal mix outputs can be monitored via AES50 upstream to connected consoles
• Supports remote control forwarding of a DP48 personal master mixer to another DP48
• Talkback signals from DP48 are summed and sent upstream/ downstream on Ch 48
• Front panel buttons for sending personal mixes to analogue outputs, as well as for StageConnect and AES50-A upstream
• StageConnect master output with phantom power for connecting with other StageConnect I/O units
• StageConnect is sharing 32-channel audio, 24-Bit uncompressed PCM, 44.1/48 kHz, at sub-milisecond latency, over standard XLR or DMX cable (110- Ohm recommended)
• Shielded CAT5e cable max. 250 ft / 80 m length recommended on all AES50 ports
• Features industry standard RJ-45 AES50 network ports
• Rugged 1U chassis for durability in portable applications
• Auto-ranging universal switched-mode power supply
