Marshall Dual 7-inch 3 RU Rackmount HDMI/12G-SDI Monitor
Description

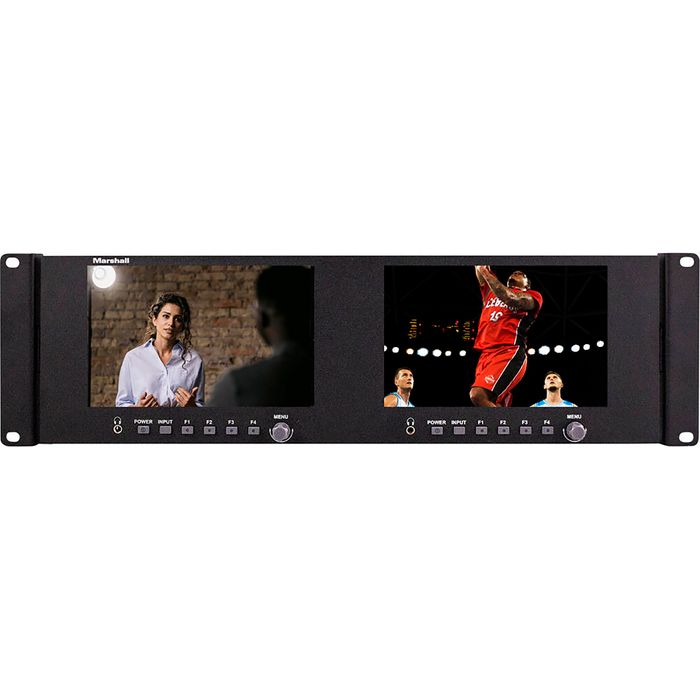

Featuring two 7" displays in an ultra-slim 3 RU design and offering a LAN port for Ethernet LAN control, the Dual 7" 3 RU Rackmount HDMI/12G-SDI Monitor from Marshall Electronics is designed to provide efficient broadcast monitoring of up to two video signals with up to DCI/UHD 4K60 resolution. The unit features 12G-SDI and HDMI inputs and loop outputs per display, and a headphone output is provided for each panel for monitoring audio. There's a single tally port on the rear and a three-color tally light above each display. The displays are LED backlit panels with a 1920 x 1200 resolution and a wide 160° viewing angle, providing for more consistent monitoring.
Over the Ethernet port, the unit can be controlled via a web GUI over a LAN. A variety of image analysis functions include waveform, vectorscope, audio phase, HDR, S-Log conversion, and user 3D LUTs, and four customizable function buttons per monitor are provided on the front panel.
A power adapter is included for the barrel port, and there is also a 4-pin power input available for redundant power. Adjustable rack ears are also included to mount into a 3 RU rackmount slot.
Dual Full HD Screens
Two high-definition screens with excellent color rendition and stability. Adjustable LED backlight compensates for different viewing environments.
Split-Screen Comparison
Compare HDR, gamma, and S-Log scene corrections side-by-side for "before and after" effect in real time.
Off-Axis Performance
Wide angle of view allows the user to position the rack in any number of physical locations.
Image Tools
Waveform, vectorscope, color space, gamma adjust, HDR, safety marker, aspect marker, center marker, scan modes, aspect ratio, H/V delay, check field, image freeze, peaking, false color, exposure level, histogram, time code, audio meter, and more
Key Features:
- 12G SDI input low latency, eliminates external downconverter
- Two 7-inch diagonal displays
- Front panel controls give access to all functions
- Remote controllable via Ethernet. PCSet Control App available
- Red, Green, Yellow on-screen tally. Control via GPI or Ethernet
- All inputs have looping outputs allowing for flexible system design
- Waveform, Vector, Histogram, HDR, S-LUT and User LUT's
- Timecode Display (VITC & LTC modes)
- Four user Function buttons
- Tilting mount. Adjust for optimum viewing or accessing back panel
- Headphone jack to monitor embedded stereo audio
- Firmware update via USB drive
