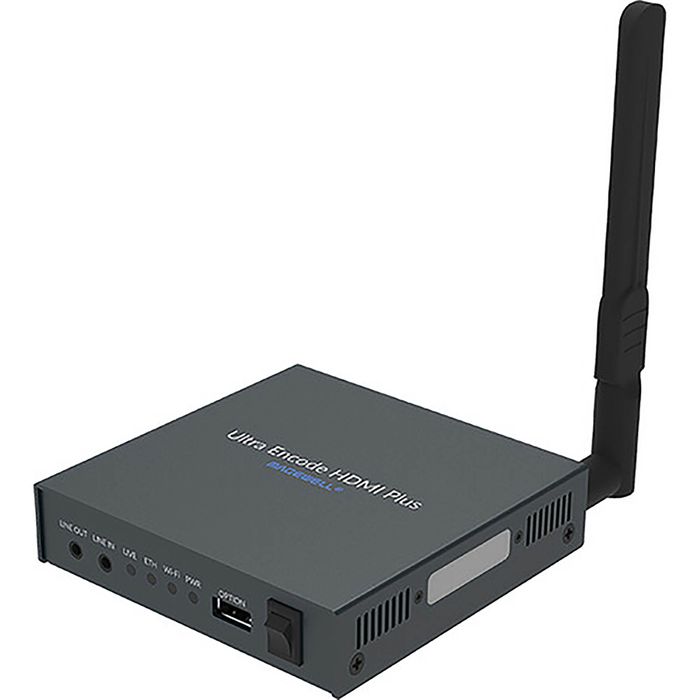

Magewell Ultra Encode HDMI Plus
Price:
$1,257.00 (excl. GST)
Stock Code:
151947
Enquire for ETA
Description
The Ultra Encode HDMI Plus can encode at resolutions up to 4096x2160 at 30 frames per second from its HDMI interface. This model support multiple video encoding formats and technologies – including H.264, H.265 (HEVC), NDI HX2 and NDI HX3 – and a wide array of streaming protocols including RTMP, RTMPS, SRT, RTSP, RTP, HLS, and TVU's ISSP technology.
Key Features:
- Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input and loop through signals
- Input & loop through 8-Channel, 24-bit HDMI embedded audio
- Input audio from 3.5 mm LINE IN
- Dual stream encoding profiles: main stream and sub stream up to 4096x2160p30
- Max bitrate: 62Mbps (NDI® HX3), 32Mbps (Others)
- Support for H.264/HEVC video encoding
- Provide video aspect ratio conversion, image rotation and cropping for the main and sub streams
- Encoding 8-channel AAC and audio channels mapping
- Side-by-Side 3D video encoding
- Natively support Facebook, Twitch, YouTube and WOWZA
- Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI® HX2/NDI® HX3/HLS/TS over UDP/TS over RTP/TVU ISSP
- Allow simultaneous 6 sessions over multiple streaming protocols
- Support for streaming schedule
- Record to internal storage (128GB), external USB storage or network attached storage (NFS/CIFS)
- Automatically upload recorded files to remote file storage platform
- Video recordings in MP4, MOV or TS format
- Normal recording and loop recording supported
- Support for recording schedule
