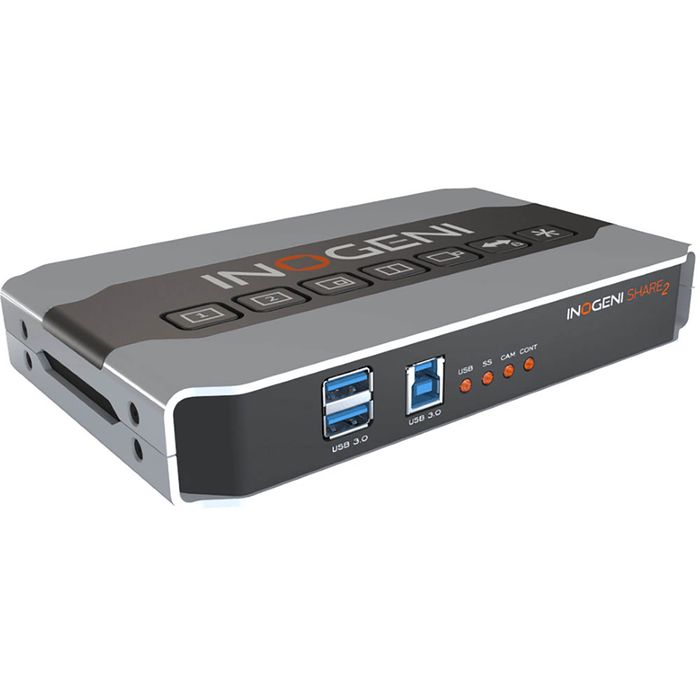

INOGENI SHARE 2 Dual Video USB 3.1 Gen 1 Capture Device
Description
The INOGENI SHARE 2 is a dual video to USB 3.0 converter. It's an easy-to-use solution for capturing two video sources simultaneously and running them via USB to your computer for streaming in applications like Skype. Built-in IP control allows you to control the SHARE 2 over a network. It provides Web-based control using HTTP or TCP/IP.
For those familiar with the original SHARE, SHARE 2 offers the same features but with no USB bandwidth limitations, as well as with full Mac support, and support for multiple mixer control interfaces. With no bandwidth limits, two 1080p60 signals can now be streamed at the same time. SHARE 2 requires no driver installation and works with all motherboards and USB 3.0 chipsets.
SHARE 2 features a mixer that allows you to send your two video sources as one source, which is the only way supported by most video conferencing applications, like Skype, Zoom, Webex, and GoToMeeting. You can assign the two sources to appear in the application as side-by-side, big-and-small, or picture-in-picture, or you can designate input 1 or input 2 to appear individually in full screen. The designations are set in advance, and can be done via panel controls, RS-232, the optional INOGENI REMOTE, or HID via USB connection.
SHARE 2 has an HDMI input as video input 1, and DVI-I and composite inputs that you can select between for input 2. (The DVI and composite inputs cannot be used at the same time.) It also comes with DVI to VGA and DVI to HDMI adapters for use on input 2. SHARE 2 supports up to 1080p60 via HDMI, DVI, and VGA. In addition, there are 3.5mm analog audio input and output ports for connecting a microphone and speaker for two-way communication, an RJ45 port for RS-232 connection, and two USB 3.0 ports for expansion purposes.
SHARE 2 is also OEM and system developer friendly. It can be controlled by the INOGENI app or via an included API so you can design your own. You can read a source's status, presence, and format, modify the EDID, ask for custom functionalities, and more.
Key Features:
- 2 HDMI cameras mixer into a single USB 3.0 interface
- Engage a dynamic presentation and easily switch up to 14 mix setup videos
- Change camera and video configuration without cutting the flow of your presentation
- Ideal for remote education, collaborative meetings, webinars or live streaming
- Compatible with the Q-SYS Core processors
- Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)
- Output: Uncompressed video on USB 3.0 or MJPEG on USB 2.0
- Audio I/O and mixer via the INOGENI Control App
- Controllable by LAN & RS-232
- Cost-effective solution that is reliable and simple to install and connect (no driver required)
- Compact and robust design with its aluminium enclosure
