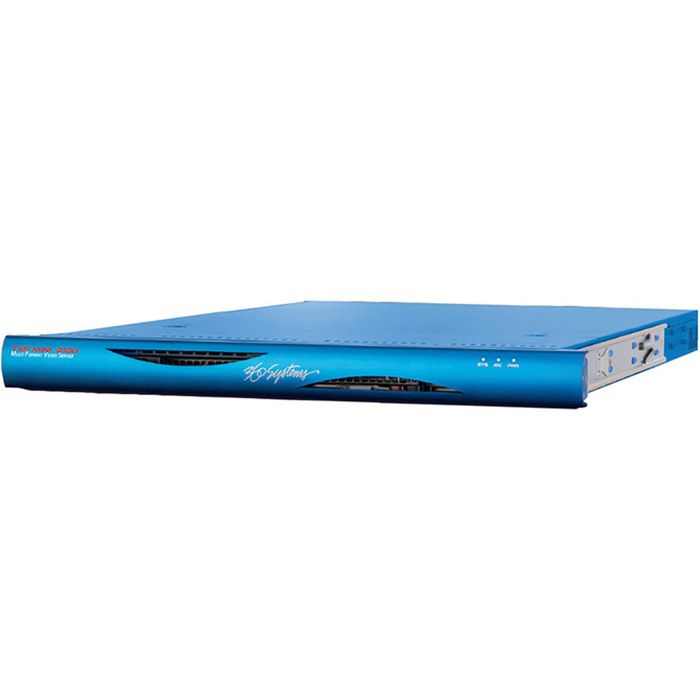

360 Systems TSS-2100 2-Channel HD/SD Server with Remote Workstation

POA
Stock Code:
51063
Enquire for ETA

Description

2 Channel SD & HD Compact, up to 8TB of Storage The Reliable, Multi Format Video Server. The TSS - 2100 offers a single bi-directional channel and a single playout channel.

Key Features:

  • 2 Channels, 1 Record/Playout and 1 Playout

  • 1U, Short Chassis Form Factor

  • 16 Channels Embedded Audio

  • H.264 and MPEG2 Encoding / Decoding

  • Automatic Up/Down/Cross Conversion of HD or SD content

  • Remote Control From PC’s via Ethernet

  • Redundant Power / Cooling


Video
- Record and play in 720p, 1080i or SD on any channel
- Various standard codec and file formats are accepted for playout, such as H.264 or MPEG-2 in .mxf, .mp4, .mpg or .mov containers.
- Independently configure each output to broadcast in 720p, 1080i or SD
- Perform jog and shuttle for rapid movement within a clip
- Smooth slow motion playout
- 16 channels of embedded audio per video channel
- Configurable for 29.97/59.94 or 25/50
- High quality 10 bit video and 24 bit audio support

Reliability
- Redundant cooling and power
- Redundant RAID 5 storage
- Linux based operating system

Connectivity
- HD-SDI, SD-SDI compatibility
- Gigabit Ethernet
- Serial port control for each channel via the VDCP or Odetics protocols for use with automation or remote controls
- Independent GPI inputs and outputs (12 each) for external triggering or control

Software
- Automatic conversion plays SD and HD files back-to-back
- Local software GUI
- Remote control from a PC
- Record & playlisting

TSS Applications
- Budget conscious broadcasters
- Requiring multiple channels
- Broadcast trucks
- Backup systems
- Public broadcasting
- Government meetings
- Education
- Stadiums
- Record and store
- Video insertion
- Production
