CB Electronics XPatch-32

POA
Stock Code:
151062
Enquire for ETA

Description

XPATCH-32 - 32 X 32 DIGITALLY CONTROLLED ANALOGUE AUDIO PATCH BAY

CB Electronics introduces XPatch-32, designed by multi-award-winning designer Colin Broad. XPatch-32 is a 32x32 digitally controlled, fully analogue audio patch bay routing system for audio professionals and aimed at streamlining workflow in even the most demanding post or music studios.

The XPatch-32 system is controlled by our XPatch-32 program via USB, allowing for complex routings in seconds. Create, store and recall routings from sessions. Any input can be sent to multiple outputs. The XPatch-32 design is based on the A-Mon / I-Mon and shares the I/O and CPU cards, allowing for input and output muting and even gain control.

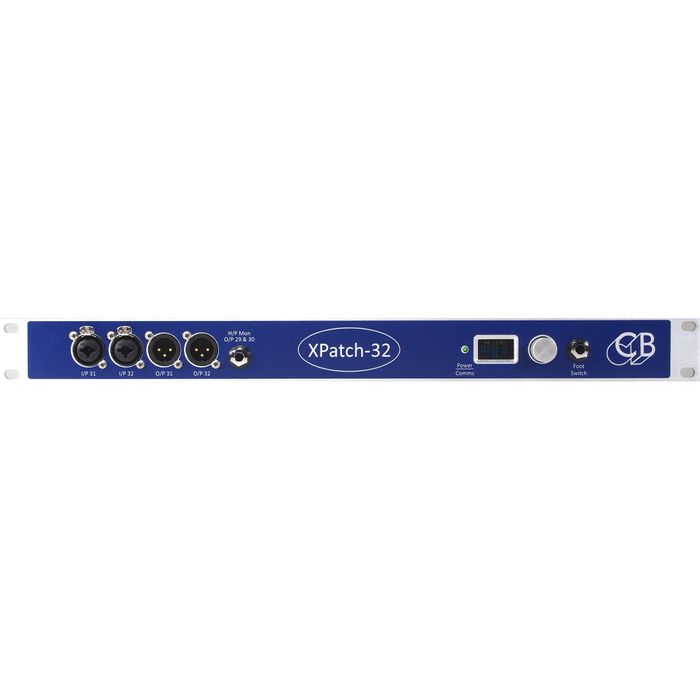

The front panel is equipped with 2x XLR combo connectors for input XLR line-level / ¼ inch jack DI input, plus 2 XLR output for quick auditioning of equipment. Also included are ¼ inch jack for headphone monitoring of inputs and outputs, OLED display and encoder with push button for function selection. In addition, there is a ¼ inch jack socket for a switch to step through snapshots (presets).

Once configured, XPatch-32 can operate independently of the XPatch-32 program and host computer via the front panel encoder or foot-switch. By switching between snapshots, the foot-switch enables the XPatch-32 to be used as a powerful studio or live performance tool for musicians.

In any studio, the XPatch-32 can make it quick and easy to use your favorite new and legacy hardware effect’s units in your mix.The XPatch-32 is a versatile stand-alone analogue routing/switching system for on-stage boutique instrument processing or amplifier selection.


Key Features:

  • 32x32 crosspoint routing

  • Zero crossing switching ("Click-Less")

  • 2 Input combo XLR line level/ 1/4 inch jack DI input

  • 2 output front panel XLR connections

  • Front panel headphone monitoring

  • Create, store and recall routings

  • Any input can connect to multiple outputs

  • OSX and Windows compatible software

  • Software and firmware updates via USB

  • 8 channels of metering

  • +4/-10 dBm line level selection on every input and output

  • 5 Pin MIDI input

  • I/O on DB-25 connectors - Tascam format

  • Unused I/O are muted to minimise crosstalk

  • Footswitch input or selection of snapshots (pre-sets)

  • Designed by CB Electronics multi-award-winning designer Colin Broad

  • Load and save predefined signal paths

  • Connect a TMC-1 or TMC-2 to use as a monitor controller with electronic patch
