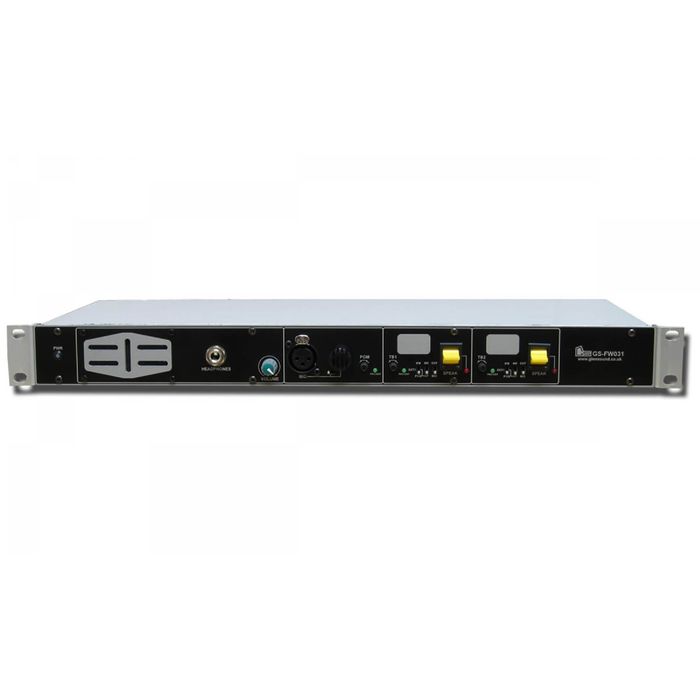

Glensound 2 Channel 4 Wire subrack with IFB
Description
GLENSOUND BROADCAST INTERCOMS - 4 wire and IFB
Intercoms using 4-wire topography are often used in broadcast environments, particularly in outside broadcasting, where the simplicity of the wiring simplifies the connection of an ad-hoc or semi-permanent system to communicate between personnel and, with IFB, provide cue to operators and presenters. The models in this selection are all designed to inter operate with equipment using standard broadcast operating levels and connectors. They range from a single-circuit belt-pack for use with headphones to six circuit, rack-mounting intercoms, with integrated loudspeaker and talkback microphone.
This has two 3-way talk switches. A rear-mounted XLR input provides a programme input. Speak on/off control is via sprung keys. Two switches allow the user to switch between program and interruptible foldback, I/P and 4wire. A third control allows control over mix and cut.. Controls next to each talk switch set the level of the incoming 4-wire signals heard in the speaker and headphone.
Features:
- 2 x 4 wire circuits
- 1 x program audio input
- 1 x external audio input (not transformer balanced)
- 4 wire & program audio inputs are transformer balanced
- Inputs & outputs on rear panel XLRs
- 4 wire inputs and program input have course gain controls
- Signal present LEDs indicate incoming audio present on 4 wire inputs and program input
- Front panel loudspeaker
- Headphone output (cuts LS)
- Variable LS dim (Internal preset)
- Loudspeaker/ headphones volume control
- Program input can be switched to any of the 4 wire outputs and interrupted when speak key pressed
- 4 wire inputs can be switched to their own outputs and interrupted when speak key pressed
- External input can be switched to any of the 4 wire outputs and interrupted when speak key pressed
- Program, external and 4 wire interrupts can be set to either cut or mix with the talkback mic
- Front panel mic or external mic input
- Separate gain controls for the 2 mic inputs (internal presets)
- Speak keys are latching/ off/ momentary
- LEDs indicate when speak keys are on
- Relay loop closure outputs from speak keys
- Mains powered with internal switch mode PSU (100 to 240 VAC input range)
