Glensound Single Channel Four Wire Subrack With IFB

Price:
$2,352.00 (excl. GST)
Stock Code:
150864
Enquire for ETA

Description

GLENSOUND BROADCAST INTERCOMS - 4 wire and IFB

Intercoms using 4-wire topography are often used in broadcast environments, particularly in outside broadcasting, where the simplicity of the wiring simplifies the connection of an ad-hoc or semi-permanent system to communicate between personnel and, with IFB, provide cue to operators and presenters. The models in this selection are all designed to inter operate with equipment using standard broadcast operating levels and connectors. They range from a single-circuit belt-pack for use with headphones to six circuit, rack-mounting intercoms, with integrated loudspeaker and talkback microphone.

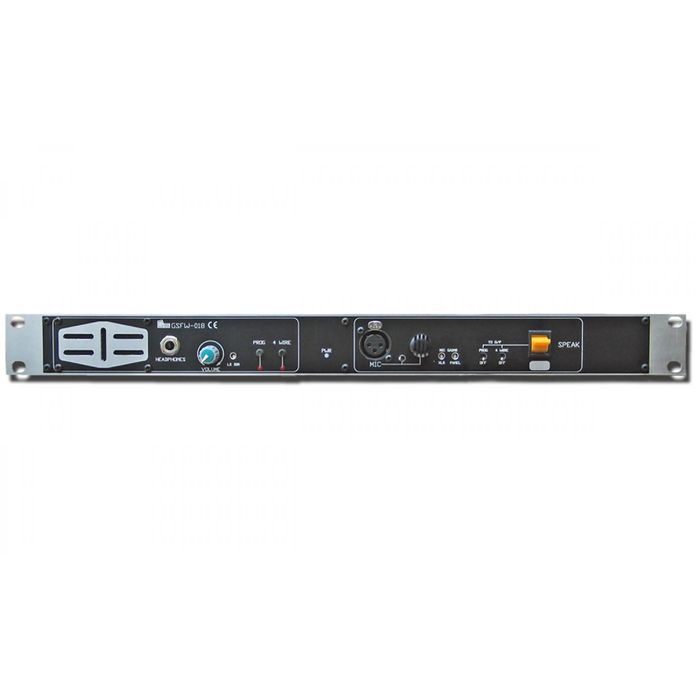

GS-FW018 - 1x 4W circuit - IFB, 1x cue in
This has a single 3-way talk switch. A rear-mounted XLR input provides a programme input. Two switches next to the talk switch select the programme and 4-wire inputs to feed the 4-wire output when the talk switch is in the centre position. Two controls set the level of the two inputs heard in the speaker and headphones.



Features:

  • Mains Powered

  • 19 Inch 1RU

  • Single 4 wire circuit

  • Program audio input

  • Front Panel Mic or External Mic

  • Mic gain control

  • Compressor/ limiter circuit for mic

  • Front panel lever key for switched output

  • 4 wire input transformer balanced

  • Program input transformer balanced

  • Input gain controls for 4 wire & program

  • Front panel Loudspeaker

  • Headphone Jack (breaks LS)

  • Variable LS dim (when lever key switched)

  • Audio presence LEDs indicate incoming audio

  • 4 wire input can be switched to 4 wire output

  • Program input can be switched to 4 wire output
