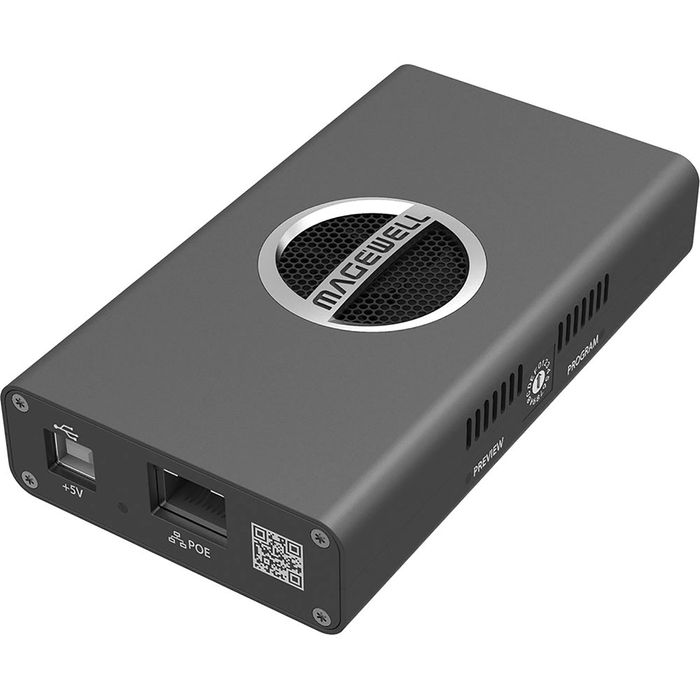

Magewell Pro Convert HDMI 4K Plus
Description
Convert HDMI video to an NDI stream with the Pro Convert HDMI 4K Plus video signal converter from Magewell. Pro Convert 4K features one HDMI input and one HDMI loop-through output with eight channels of embedded audio, and it supports HDMI input up to DCI 4K 4096 x 2160 at 60 fps. The RJ45 Gigabit Ethernet port supports encoded NDI output up to 4096 x 2160 8-bit 4:2:2 at 60 fps.
The HDMI loop-through allows you to view your input on a monitor while your NDI-encoded stream can be sent to a variety of NDI-compatible encoding or streaming applications such as OBS, XSplit, vMix, Wirecast, and others via Ethernet. The mini DIN-8 tally/PTZ port provides tally input to pass-through as well as for use with the unit's status LEDs. The LEDs also indicate power, output, and input signal status.
The unit is powered by a 5V power adapter connected to its USB 2.0 Type-B port or via PoE (Power over Ethernet) over its RJ45 port. The Pro Convert can be managed with a web UI to configure settings and to perform firmware updates via the USB port. A 1/4"-20 mounting thread allows you to mount the unit in a rack, bracket, or on a stand. Included with the Pro Convert are a USB cable, a 5V power adapter, a mini DIN-8 cable, and an L-bracket for mounting.
Key Features:
- Convert 4K HDMI Video to NDI Stream
- 1 x HDMI Input, 1 x HDMI Loop-Through
- 1 x RJ45 + PoE NDI Output
- HDMI 1.4, 2.0, DVI-D 1.0 Supported
- Input up to DCI 4K60 4:4:4 Video
- NDI Encode up to DCI 4K60 4:2:2
- 1 x Mini DIN-8 for PTZ/Tally
