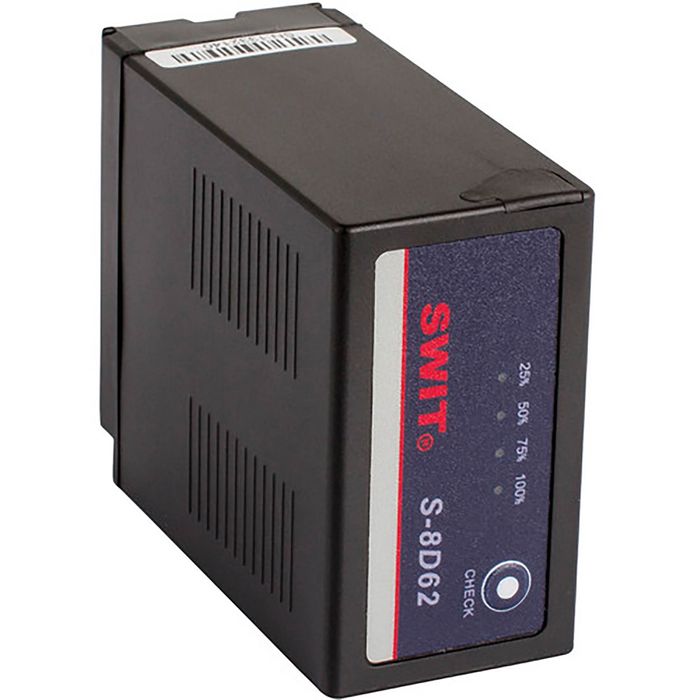

Swit S-8D62 Panasonic CGA Series DV Camcorder Battery Pack
Description
Panasonic CGA series Replacement battery
Similar battery as Panasonic CGA-D54S
S-8D62 is the replacement battery for Panasonic CGAD54S, compatible with Panasonic AG-HVX200, AG-HPX250, AG-DVX100, etc.
With 7.2V nominal voltage, the S-8D62 has 47Wh / 6.6Ah capacity, and can run approx 3 hours on AG-HPX250, and 6.5 hours on AG-DVX100 camcorder when LCD monitor is on.
A 5.5/2.1mm pole-tap DC output socket is equipped on the side of S-8D62 battery, for DC 7.2V (Nominate) connection. You can connect on-camera LED light, monitor or wireless transmitter on the pole-tap socket, and get power simultaneously with camera.
The Max power from the pole-tap is 30W, 4A.
The S-8D62 battery has the 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.
Easy Charging
The S-8D62 can be charged on SWIT Dual channel charger S-3602D or SWIT 4-ch charger LC-D421. It takes about 4 hours and 30 minutes to charge from empty to 100%.
Key Features:
- Li-ion battery pack of 7.2V nominal voltage
- Comparable to Panasonic CGA series DV batteries
- 47Wh / 6.6Ah capacity
- 4-level LED power indicator
- 7.2V Pole-tap DC output
- Multiple circuit protections
