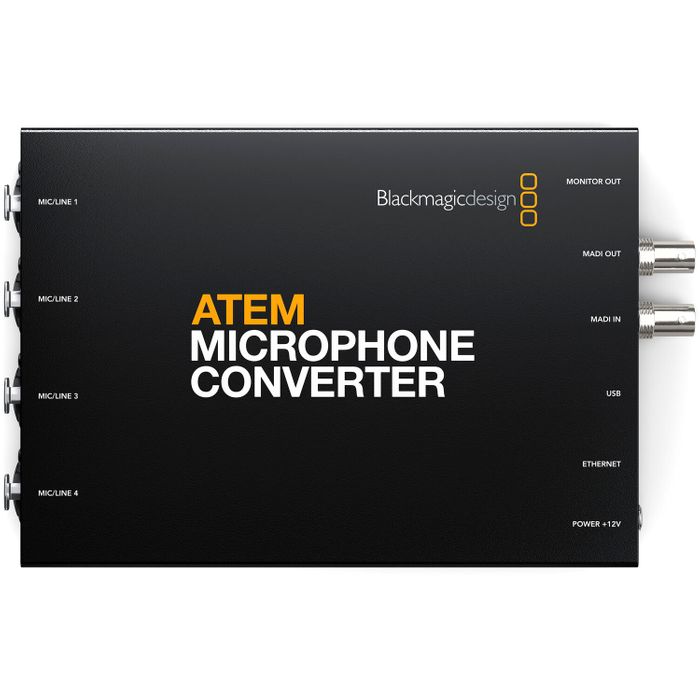

Blackmagic ATEM Microphone Converter
Description
Whether you're building a podcasting studio or you just need more microphones, the Blackmagic Design ATEM Microphone Converter allows audio-input expansion for your ATEM Television Studio by converting four analog XLR inputs to MADI. Equipped with two BNC MADI I/O ports, the Microphone Converter simply plugs into the ATEM Television Studio MADI port, so there's no complex setup required—and additional units can even be daisy chained for more sources. The four XLR-1/4" combo analog inputs are mic-/line-selectable and provide 48V phantom power.
The ATEM Microphone Converter utilizes 32-bit float digital preamps and eight ADCs per input to capture clip-free, 24-bit / 48 kHz recordings with an extremely low noise floor, a wide dynamic range, and very low distortion—no matter how loud or quiet a performance gets. A convenient HDMI output with scrolling audio waveforms enables you to connect a display to monitor the status of your audio. USB and Ethernet ports allow for remote admin and software updates via the ATEM Software Control app.
Key Features:
- Audio Inputs for ATEM Television Studio
- Connects to Switcher via MADI
- 4 XLR-1/4" Combo Mic/Line Inputs, +48V
- 32-Bit Float Digital Preamps
- 8 ADCs/Channel, 24-Bit / 48 kHz Audio
- Easy-to-Use, No Setup Required
- 64-Channel MADI Digital Audio I/O Ports
- HDMI Monitor Out
- USB-C and Ethernet Ports
- Works with ATEM Software Control App
- Extremely Low -129dBV Noise Floor
- Precisely Matched Analog Inputs
- HDMI Monitoring with Scrolling Audio Waveforms
