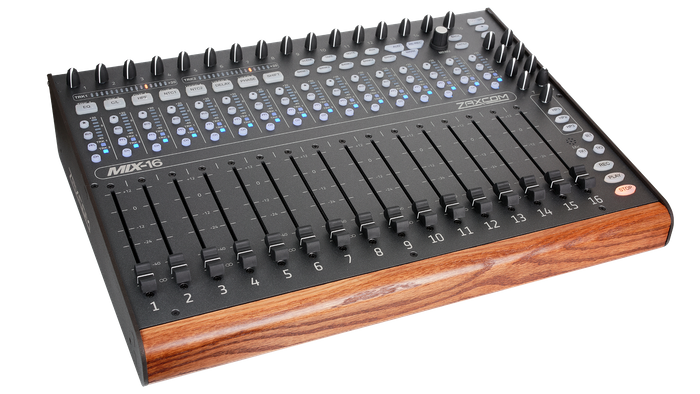

Zaxcom MIX16 - Control Surface
Description
FUNCTIONALITY
The light-weight Mix-16 is an intuitive control surface solution for Deva 24. Combined, the system delivers 24 track recording that can be controlled by 16 motorized faders in five banks found on the Mix-16. Any combination of input channels on Deva 24 can be assigned to any of the five banks using any combination of analog or digital inputs. This provides sound recordists with an integrated recording and mixing solution capable of solving a variety of workflows.
FLEXIBILITY
Each fader has a bright LED input meter and an input trim located at the top of the console with mix tracks one and two featuring two LED meters. The Mix-16 is equipped with a pre fader listen (PFL) monitoring system that allows you to listen to channel audio before the fader is closed.
Mix-16 has the ability to control the ZaxNet remote control function of Deva 24. Pre amp gain adjustments can be sent directly to Zaxcom Digital Recording Wireless transmitters from the input control pots on the control surface during a live recording.
DESIGN
A small form factor design allows it to fit into standard 19? (48 cm) rackmounts integrating perfectly with production sound carts and audio cabinets.
CONNECTIVITY
A standard USB 2.0 cable marries the Mix-16 to the Deva 24.
POWER
When paired with Deva 24 power consumption is less than 1.5 amps at 12 volts (18 watts).
