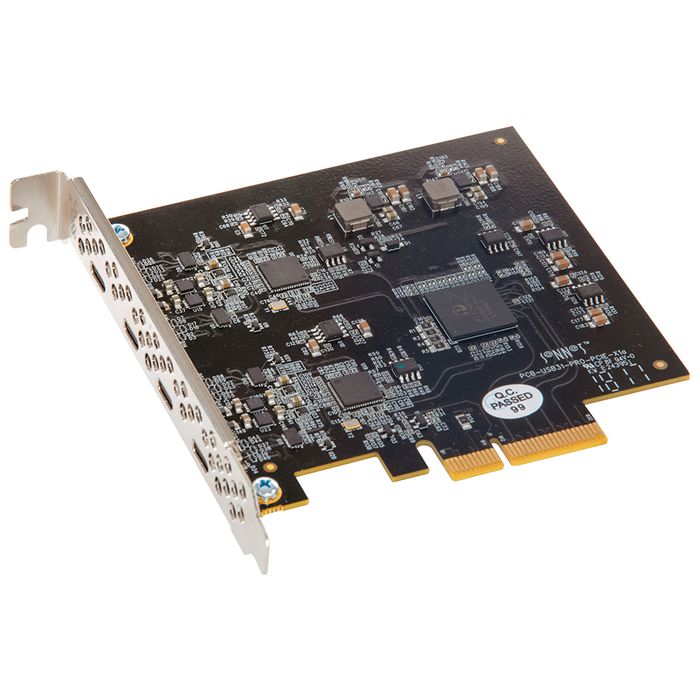

Sonnet Allegro Pro 4-Port USB-C 3.2 PCIe Card

Price:
$335.00 (excl. GST)
Stock Code:
149484
Enquire for ETA

Description

Powerful USB 3.2 Gen 2 Performance: Add Four USB-C 10Gbps Ports to Computers and Thunderbolt Expansion Systems with PCIe Slots

Equipped with SSDs, the fastest USB drives you can buy today are capable of 800 MB/s data transfers, and many are bus-powered. Most desktop computers (even new models) include generations-old USB interfaces that will throttle that performance and may not offer adequate power to allow bus-powered drives to operate. Install Sonnet’s Allegro USB-C 4-Port PCIe card into a PCIe slot of your Mac Pro®, Windows®, or Linux® computer, or Thunderbolt Expansion System, and support fast USB drives at maximum performance.
Power Advantages


Unlike ordinary USB-C cards, Sonnet's Allegro Pro has the following advantages:


  • Delivers 7.5W of power per port to USB-C bus-powered devices

  • Doesn't require separate power plug connection; gets the power required to operate connected drives from the slot it’s installed in

  • Independent, per-port power regulation protects each port from glitches on adjacent ports, preventing auto-disconnects of already-connected drives

  • Features a resettable fuse on each port, protecting both card and computer should a cable or peripheral fail; resetting a tripped fuse is simple—just shut down and restart your computer


Allegro Pro USB-C 4-Port PCIe: Two Controllers, Four Ports – Up to Twice as Fast as USB 3.0 Cards

Featuring two 10Gbps USB 3.2 Gen 2 controllers and four USB-C ports, the Allegro PCIe card supports data transfers at up to twice as fast as USB 3.0 and USB 3.1 Gen 1 ports are capable. With two controllers onboard, the Allegro card speeds data transfers between connected drives, and enables your computer to load and off-load data more quickly.


Key features:

  • Compatible with 2019 Mac Pro (Big Sur requires 11.3+)

  • Adds Four USB-C 10Gbps Ports to Your Computer

  • Features Dual USB 3.2 Gen 2 Controllers for Fast Drive-to-Drive Transfers

  • Supports USB-C Bus-powered Devices with up to 7.5W (3.0A) Power per Port

  • Provides Independent Power Regulation for Each Port

  • Resettable Device Overcurrent Fuses Protect the Card and Computer

  • USB 3.0 Charging Port Handshake Support

  • Simultaneously Sync and Charge iPads and Other Devices (that support USB 3.0 charging at 1.5A per device)

  • Supports Storage, Hubs, and Other USB-IF Compliant USB Devices

  • Supports Hot-swappable Device Connection

  • Compatible with macOS and Windows

  • Works in Thunderbolt™ Expansion Systems (like Sonnet's Echo™ Express, xMac™ Pro Server, or xMac mini Server)

  • 2-year Product Warranty

  • Free Lifetime Customer Technical Support

  • Designed in the USA
