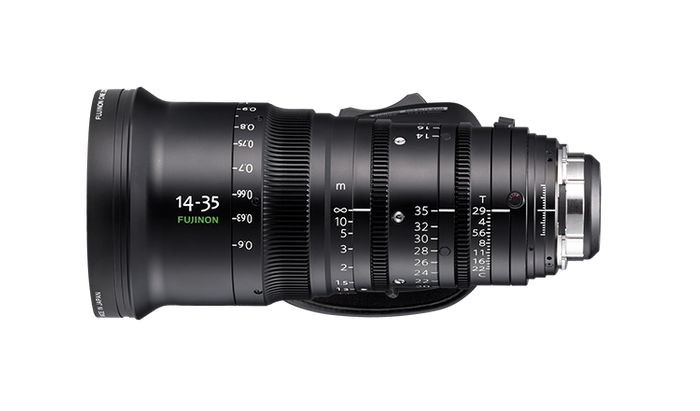

Fujinon ZK2.5x14-SAF PL Mount 35mm Lens with Servo grip
Description
ZK2.5x14 is a wide angle zoom lens with a focal length covering from 14 to 35mm.Thanks to the detachable servo drive unit on the ZK series, the lens can be operated in the same manner as a traditional broadcast ENG-Style lens and accessories. Furthermore, with the servo drive unit removed, traditional cinema manual, or external cine motors for zooming and focusing operation is also available for all models of this series.
With the latest optical simulation technology and high precision large diameter aspherical elements, it has achieved both high optical performance and a lightweight compact body of 2.9kg. Thanks to high resolution from the center to corner, high image quality without image distortion will be exhibited on the large screens of movie theaters.
Features:
• Outstanding 4K optical performance and compact design
• ENG Style with Detachable Servo Drive Unit
• Super 35mm large format coverage
• Compatible with current broadcast and cine lens accessories
• Natural Bokeh(Blur) thanks to 9 Blades Round Iris
• 16bit encoder for virtual device
Specifications:
Focal Length - 14-35mm
Zoom Ratio - 2.5x
T-No. - T2.9
Lens Mount - PL Mount
M.O.D from Sensor Plane - 0.6m / 2.0 ft (with macro function 0.33m / 1ft 1in)
Angular Field of View (27.45mm x 15.44mm):
14mm - 88°52'×57°45
35mm - 42°49'×24°53''
Focus Rotation - 200°
Zoom Rotation - 120°
Iris Rotation - 59°
Iris Blades - 9
Macro Function - Yes
Front Diameter - 114mm
Filter Diameter - 111mm
Length (approx.) - f114 x 231mm / 9.1"
Weight (approx.):
2.9kg / 6.4lbs.(with Drive Unit)
2.4kg / 5.3lbs.(without Drive Unit)
