Allen & Heath XONE23C DJ Mixer

POA
Stock Code:
146184
Enquire for ETA

Description

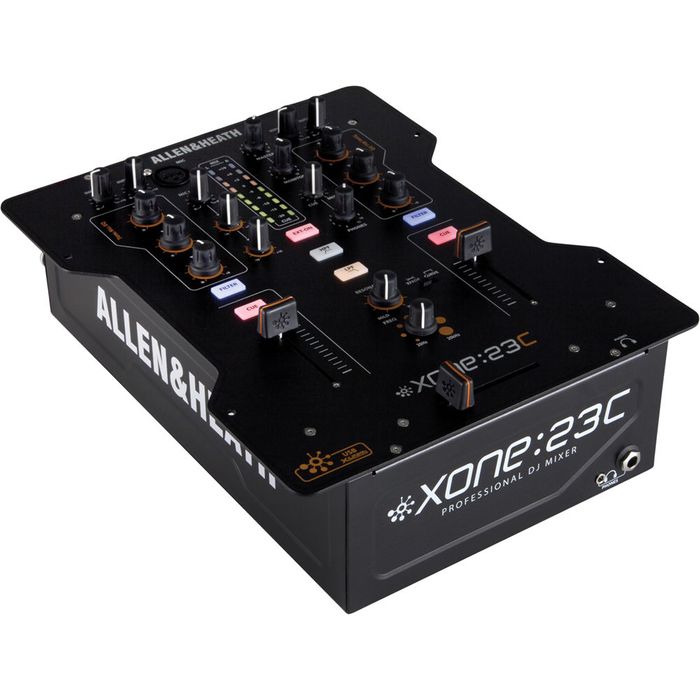

The Allen & Heath XONE:23C - DJ Mixer + Internal Soundcard is designed for professional and home DJ applications such as at a party or in the club. The mixer features an internal 4 stereo channel 96 kHz 24-bit USB sound card, an enhanced version of Allen and Heath's Xone voltage controlled filter system with resonance control, a 3-band total kill EQ per side, VCA faders, illuminated switches, styling from the flagship DB4 DJ mixer, and a user upgradeable crossfader with curve selector.

For I/O, the mixer includes two pairs of RCA line inputs and two pairs of RCA phono inputs. Though the mixer has two faders, each of the four inputs has an independent level control to enable playing up to four simultaneous sources in the mix. It also features dedicated stereo send and return channels for integrating external effects units. The front panel of the unit includes a balanced XLR input for connecting a microphone with level, high frequency, and low frequency equalizer controls.

The master outputs are on balanced XLR connectors and the mixer includes a dedicated stereo booth output, as well as a dedicated stereo record out for capturing your mixes to a portable recorder. An 1/8" and a 1/4" headphone connector enable cueing with a wide variety of DJ headphones.

For control, the front panel of the mixer features gain knobs for all four channels. The four inputs are slit into left and right sides, each with a 9-segment LED light meter, separate high, mid, and low frequency total kill EQ knobs, a VCA channel fader, illuminated cue button, and an illuminated button to engage the filter on that side. The center section includes an illuminated button for engaging the external effects send/return, an illuminated button for engaging a high pass filter, an illuminated button for engaging the low pass filter, a frequency selector knob for the filter, and a VCA resonance control knob from mild to wild.

The crossfader features a switchable curve for mixing or scratching. As an option, the user can replace the stock crossfader with Allen and Heath's high end Innofader for enhanced performance (sold separately).

Key Features:

  • 4 Stereo Channel 96kHz 24-Bit Sound Card

  • Xone Filter with Resonance Control

  • 3-Band Total Kill EQ

  • VCA Faders

  • Crossfader Curve Selector

  • Balanced XLR Microphone Input

  • 9-Segment Signal Level Monitoring

  • Balanced XLR Master Outputs

  • Dedicated Monitor Output

  • External FX Loop
