Allen & Heath WZ4162 19" Analogue Mixer

POA
Stock Code:
146181
Enquire for ETA

Description

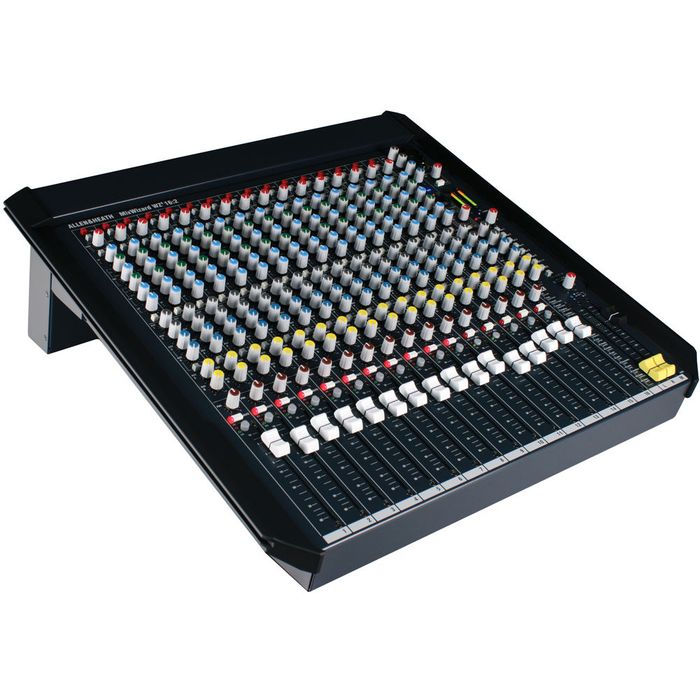

The MixWizard4 16:2 from Allen & Heath is a versatile, all-purpose professional mixing console with 100mm faders. The console features 16 mic/line inputs with inserts and direct outputs, six auxiliary outputs, two stereo returns and two built-in FX engines with 20 presets.

Channels 1 through 16 feature mic/line inputs with balanced XLR and TRS jacks with 48V phantom power for plugging in microphones and instruments, each with a 4-band EQ with sweepable mids. They each also feature a peak indicator, -20dB pad, six aux send knobs, pan knob, channel mute and a high-pass filter that attenuates frequencies below 80Hz by 12dB per octave.

Channels 1 through 16 also feature inserts that can be used for inserting processing equipment into the signal chain such as compressors, outboard EQ and delay units. Furthermore, they each have direct outputs that can be sent to a multi-track hardware recorder or computer audio interface for tracking live performances. The console's six aux sends use balanced TRS output jacks that can be used to feed stage monitors, outboard effects and other gear. In addition, the MixWizard4 16:2 is equipped with two stereo returns with TRS inputs that feature separate gain knobs. These allow for returns from outboard effects or input from external audio devices such as CD or MP3 players to be mixed to the stereo bus.


Key Features:

  • 16 x Line Inputs with XLR/TRS Jacks

  • Built-In FX with 20 Presets

  • 6 x Aux Sends

  • 16 x Direct Outputs

  • 2 x Stereo Returns

  • 100mm Faders

  • 4-Band EQ with 2 Swept Mids

  • +48V Phantom Power

  • Signal, Peak LEDs & Tri-Color Metering

  • 19" Rack Mountable
