Buzz Audio TONIC 3 Band Eq for 500 Series

Price:
$945.00 (excl. GST)
Stock Code:
145673
Enquire for ETA

Description

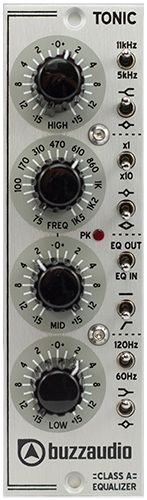

The Buzz Audio Tonic offers three bands of equalisation with a versatile sweep midrange section and fixed two frequency high and low bands. The tonic also has a high pass filter utilizing another real choke. The signal path of the tonic is all True Class A discrete transistor with the output balanced via a Lundahl LL1517 high spec transformer. The tonic is designed to fit into the popular API 500 Series modular racks and requires a rack to function.

The Tonic high band is switchable bell or shelf and features two frequency settings of 5kHz and 11kHz. The low band is also switchable bell or shelf with two frequency setting at 120Hz and 60Hz with both bands providing +/- 15dB of boost and cut. Thanks to the use of passive choke based filters, users can expect a very tight sounding bottom end and sparkly clear highs when applying boost with these two bands.

The sweep "bell" midrange extends from 75Hz to 1500Hz (x1 mode) or 750Hz to 15000Hz (x10 mode). The midrange "Q" or bandwidth can be selected tight(ish) or broad and utilizes the Constant Amplitude Phase Shift (CAPS) filter circuit developed by Mr Steve Dove. +/-15dB of midrange boost and cut is available.

The Tonic 18dB/oct high pass filter is completely passive with two turn over frequencies (50Hz or 90Hz) selected by the user via jumpers on the circuit board. Completing the picture is the "OL" LED which illuminates when levels exceed +20dBu and the "BYP" switch which completely removes the tonic from the signal path.

Rack Compatibility
The Tonic uses 1 rack space and draws 120mA +/- 15-18 volts DC, as supplied by frame power supply. Power consumption is higher than most other 500 series modules and this may stress some rack power supplies depending on what other modules are fitted. Please check the following list to see if it will work OK in your rack.

Features:

• API 500VPR Series rack module format - plug in and play
• Real choke based EQ offering superior sonics
• Advanced analogue technology - not a clone or copy of products from the past
• Fully discrete hi-bias wide bandwidth differential Class A amplifier
• High performance Lundahl output transformer

Specifications:

• Maximum Input Level; +23dBu
• Maximum Output Level; +26dBu into 3k ohm load
• Frequency Response EQ set flat; 17Hz to 175kHz (+1dB, -3dB)
• Harmonic Distortion measured +10dBu output level; 0.08% @ 100Hz, 0.02% @ 1kHz, 0.005% @ 10kHz
• Signal to Noise Ratio; -88dB A wtg, input shorted
• Input Impedance; 20k ohms approx balanced
• Indicators; Single LED overload indicator
• Size; (37Wx132H). Fits 1 space in API* 500 series rack format
• Power requirements; 120mA +/- 15-18 volts DC, as supplied by frame power supply.

*Specifications are typical of a production unit and are subject to change without notice.
