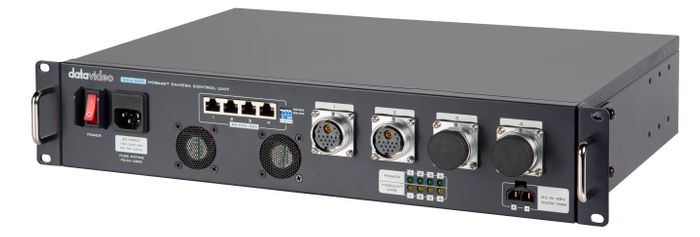

Datavideo CCU-200 HDBaseT Camera Control Unit

POA
Stock Code:
112354
Enquire for ETA

Description

Support up to 4 Cameras with a Full Range of Camera Controls

The CCU-200 is Camera Control Unit that employs HDBaseT Technology to connect up to four Datavideo BC-100 video cameras with Datavideo MCU-400 multi-camera controller and other products such as intercom and LCD viewfinder into an effective and professional studio system. It supports Iris, Focus, Gain controls and other functions of cameras.

Compatible with a Wide Range of Cameras and Remote Controllers
Built-in HDBaseT technology enables CCU-200 to transmit video, audio and serial communication signals over a single cable thus it can connect virtually any camera and its remote controller that support RS-232 and RS-422 communication protocols.

With a specific all in one cable CB-65/66, the CCU-200 system simultaneously transmit 1080p50/60 video signals for camera video output, return Program video between the cameras and a video switcher. Together with the video, audio, camera control, tally, and intercom signals, CCU-200 also provides power directly to cameras via Datavideo AD-3 adapter over a maximum transmission distance of 100 meters.

Combined with Datavideo ITC-300 digital intercom, CCU-200 allows two-way communication between cameramen and video director. Cameramen can call and talk directly via included AD-3 camera adapter or RMC-240 controller. The AD-3 also provides tally output for on-air LED status.

As long as the DC and AC power are both connected, the UPS function is available. One set of power supplies failed, and the other set of power supplies immediately rescued.
