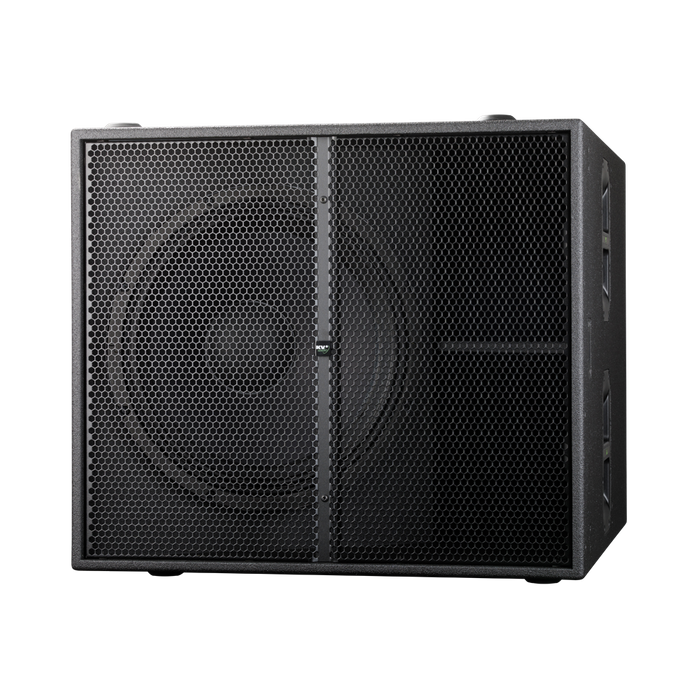

KV2 Audio VHD4.18 - VHD Subwoofer Enclosure
Description
The VHD4.18 is a quad 18" subwoofer system, comprising of four individual loudspeaker cabinets. The objective is to make the system easy to transport and setup. When assembled, the VHD4.18 system becomes a high efficiency neodymium subwoofer system with immense output. The system was designed with very high sensitivity in mind; it provides 110 dB at 1W/1m and a tremendous output of 149dB when running at full power Each cabinet incorporates a large port area that becomes an optimized horn aperture when all four cabinets are stacked together. The quad 18" subwoofer system delivers extreme output and controlled low frequency resolution.
Key Features:
• Professional, Baltic birch construction with highly resistant polymer coating
• Very High Definition low frequency reproduction
• 146dB sustained output / 149dB peak (using 4 units of VHD4.18)
• Large chamber horn reflex acoustic design
• Single 18" low frequency driver with 4" (100 mm) inside/outside, epoxy baked, high temperature voice coil assembly and neodymium magnetic structure
• Proprietary side handles (6) for simplified handling and carrying
• High impact low friction feet, allowing lock-in to other VHD cabinets and easy cabinet movement
• Front locking aluminium VHD wheel boards with wraparound hardwood bumpers
• Weather proofing option and special paint finishes available on request
Applications
Specifically designed to accompany the VHD2.0 and VHD1.0 as a true full range high output system for live performance and music
• Hire and Production
• Concert venues
• Large Theatres
• Scalable into multiple large systems
• Fixed installation
