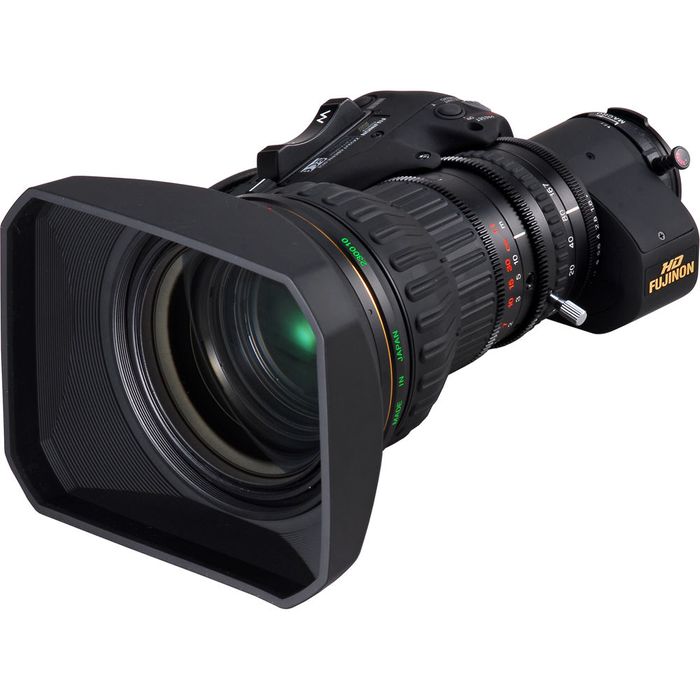

Fujinon ZA22x7.6 BERD Lens (Digital Focus)
Description
HD Broadcast, 7.6 to 167mm Lens, 2x Ext, Servo Zoom & Focus, Inner Focus, Macro
The ZA22x7.6BERD-S10 with Servo for Focus and Zoom is a 7.6-167mm lens, designed to provide 2/3" cameras with a wide to telephoto angle-of-view. The lens has a zoom ratio of 22x, and a 2x extender effectively doubles the focal range. The maximum aperture is a fast f/1.8 at 7.6-120mm and stops down to f/2.5 at 167mm. The lens also includes a digital servo for focus and zoom, which enables full studio control via RS-232.
Innerfocus minimizes the effects of lens breathing, which ensures a more consistent angle-of-view when making focus adjustments. QuickZoom improves zoom speed to 0.7 seconds end to end. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end to check focus. Releasing the button automatically returns the lens to the previously selected focal length. The Focused Intelligent Network Diagnosis (FIND) system aids in preventive maintenance and troubleshooting by evaluating electronic and mechanical parameters.
Key Features:
• 7.6-167mm wide to telephoto zoom lens for 2/3" cameras
• 22x zoom ratio and 2x extender
• Fast f/1.8 max aperture at 7.6-120mm and f/2.5 at 167mm
• Digital servo for focus and zoom and full studio control via RS-232
• Innerfocus, QuickZoom, and Zoom Limit
• Focused Intelligent Network Diagnosis
What's Included?
• Fujinon ZA22x7.6BERD with Servo for Focus and Zoom
