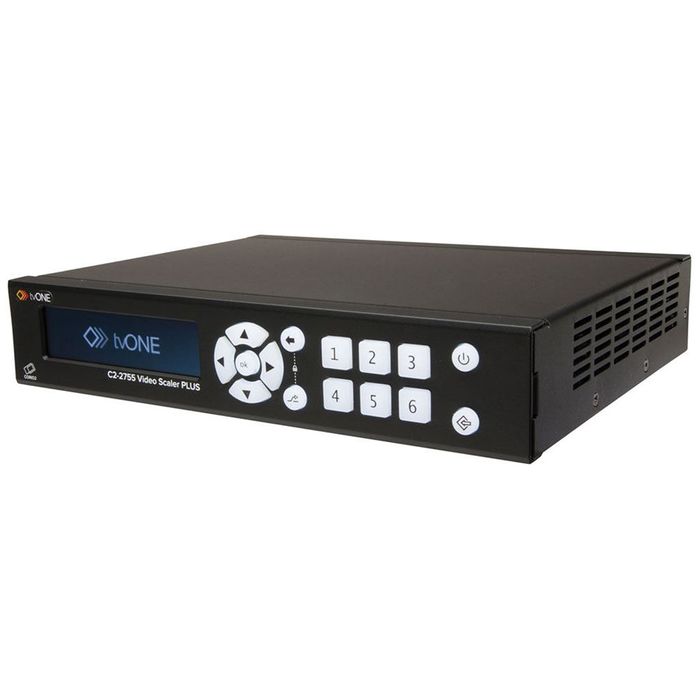

TV One C2-2755 Universal Scaler PLUS
Description
The C2-2755 Universal Scaler PLUS from TV One allows you to convert just about any type of video signal to just about any other signal with less than two frames of latency. It can support resolutions up to 1920 x 1200 at 60 Hz and will accept as well as output composite, component, VGA, DVI, and HDMI, plus can input only via SDI. Additionally, analog audio inputs and outputs allow stereo audio to be embedded or de-embedded from digital video signals. On top of scaling and frame rate conversion, the C2-2755 can also act as a 3 x 3 matrix switcher allowing you to route any of the inputs to any of the outputs.
The C2-2755 features inputs and outputs to cover just about any scenario:
-Inputs: SDI with 3G-SDI, HD-SDI, and SD-SDI support, HDMI, VGA , composite, DVI-U, a stereo 3.5 mm mini jack audio input, and three analog audio inputs on terminal connectors
-Outputs: HDMI, composite, DVI-U, and one analog audio on a terminal connector
-DVI-U: DVI-U is a combo connector that will pass HDMI, DVI, VGA, component, or composite video signals as well as embedded audio where applicable. An adapter will be required to connect any devices that do not use DVI connectors
The Auto-Switching function allows the user to connect video source and have its image automatically displayed on screen without having to press any buttons. The incoming resolution is quickly detected and analyzed, meaning within a few seconds the user is up and running and ready to present. This is particularly useful in situations where there is little or no technical supervision, such as in meeting rooms, medical environments, teaching spaces, or live staging events
Note: Please ensure you are updated to the latest firmware to enable this feature
Key Features:
• Up / Down / Cross Conversion
• Frame Rate Conversion & Pulldown Support
• DVI, HDMI, Analog In / Out + SDI In
• Keying and Custom Resizing Possible
• Genlock for Seamless Video Switching
• Auto-Switching with Input Detection
• Audio Embedding / De-Embedding
• OSD, IP, and RS-232 Control Options
• Seamless Cut, Fade or Wipe Transitions
• Rack-Moutable with Optional Kit
What's Included?
• TV One C2-2755 Universal Scaler PLUS
• Universal Power Supply (Brick Type)
• Power Cord
• Control Software For Windows (Vista and Above)
