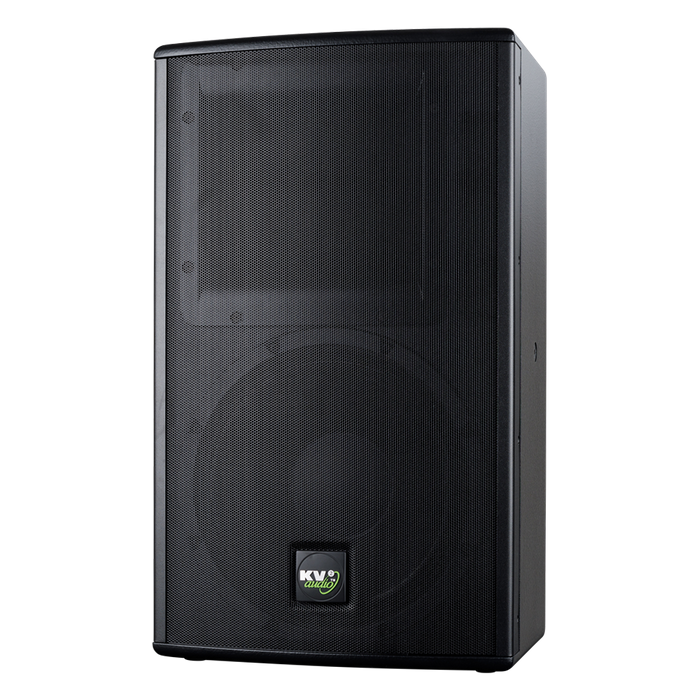

KV2 Audio ESD12 - The Ultimate Passive System
Description
The ESD12 is a high quality 2-way, passive full range loudspeaker that provides unmatched clarity and definition in a simple elegant package. The ESD12 utilizes a 12" Trans Coil woofer and the same 3" NVPD large format compression driver found in our flagship VHD products, which has one of the lowest distortion ratings on the planet.Combined with our unique delay line technology the ESD12 delivers a beautifully balanced, phase coherent and accurate compact, 2-way passive solution that is adaptable to a wide range of applications.
Key Features:
• Professional, Baltic birch construction with wear resistant polymer coating
• 127dB sustained output, 130dB peak with very high dynamic range
• Compact, asymmetrical, trapezoidal cabinet design allows for use in stage monitor and under balcony applications
• Rotatable wide dispersion 80° H x 40° V horn
• Revolutionary passive delay line
• State of the art 3" (76 mm) Nitride Titanium diaphragm compression driver with complex geometry phase plug and neodymium magnetic structure for higher output, exceptionally low distortion and extended frequency response
• 12" woofer with Super Acoustic Active Impedance Control (AIC) voice coil technology and neodymium magnetic motor structure dramatically increases force, lowers distortion and provides increased frequency response linearity
• Proprietary top handle design for simplified handling and carrying, integrates one M10 suspension point, OmnimountTM bracket point and four M6 points
• Additional side and bottom M10 points for flexible rigging and installation options
• "Top-hat" for pole mounting applications
Applications: Designed as a passive loudspeaker for the highest quality vocal and full range live performance in medium areas
• Suitable for medium to large conference, Theatre and small to medium scale concerts
• Scalable from stand alone to full range large systems by adding subwoofers
• Fixed installations
• Houses of worship
• Stage monitoring
