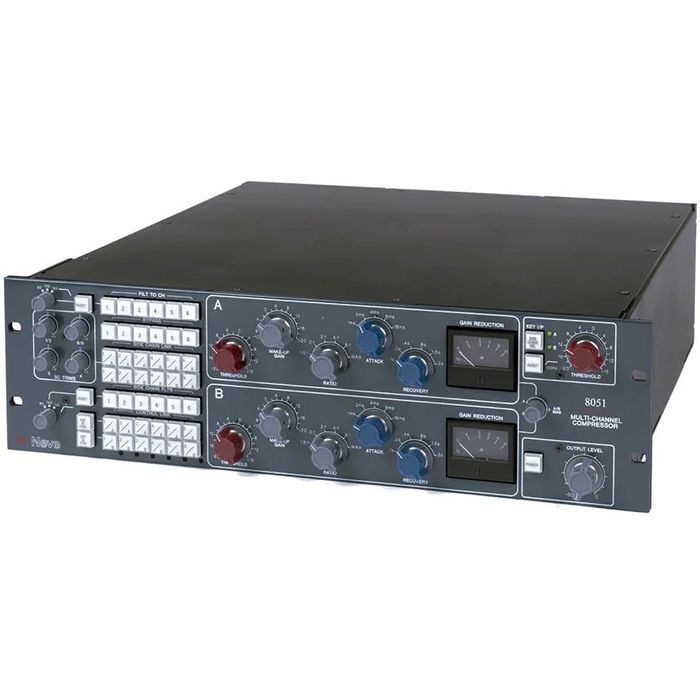

AMS Neve 8051 Surround Compressor
Description
The 8051 is a hand-made and hand-wired analogue compressor with six transformer balanced audio paths, complemented by two side chains and a key input. Based on six 2254 compression circuits—using the same feedback topology as our legendary 33609 stereo compressor—the 8051 delivers the famous Neve sound in spades. Flexible side chain routing, trimming and filtering make this a powerful and responsive tool for surround mixing and mastering.
Each channel can be controlled from either Side Chain A or Side Chain B, and the six signal paths can be split between the two side chains in any format required. Each audio channel can be routed to either or both side chains; for example the Centre channel in a 5.1 mix may be compressed using Side Chain A but also input to Side Chain B to control compression of the Surround Channels.
The 8051’s compression is exceptionally smooth, and the compression remains transparent even at extreme settings. Together with the unit’s ease of use and incredible flexibility, this sound quality has made the 8051 one of the world’s most desirable units for surround mixing and mastering. Providing legendary Neve analogue sound quality without relinquishing any control, the 8051 is available as a standalone unit or can be fitted to Neve 88RS series consoles.
Like all Neve outboard products, the 8051 Surround Compressor is hand-built and hand-wired by skilled Neve professionals in Burnley, England. Its fully discrete audio paths and classic feedback control circuit design delivers vintage Neve sound, and builds on the legacy of the highly sough-after 33609 Stereo Compressor.
Key Features:
• Hand-built, hand-wired analogue compressor for Surround mixing
• Six transformer-balanced audio paths
• Ideal surround broadcast or mastering compressor
• Side Chain control trims and Side Chain A/B bias control
• High and low pass filter
• Electronically balanced key input and LFE filter inputs
• All other inputs transformer-balanced with 3.6kOhms input impedances
• All outputs electronically balanced, post output transformers
• Maximum output: +26dBu into 600 Ohms
• Control Voltage I/O provided for linking multiple units, or linking to 33609
• EIN (20kHz band): <-78dBu
• THD+N (for 20dBu input @ 1kHz): <0.03%
• Maximum Output Level: >26dBu into 600 ohms
• Interchannel Crosstalk: <-80dB at 15kHz
• Frequency Response ±0.5dB 20Hz to 20kHz
