Hear Technologies Hear Back - OCTO Mixer

POA
Stock Code:
83636
In Stock

Description

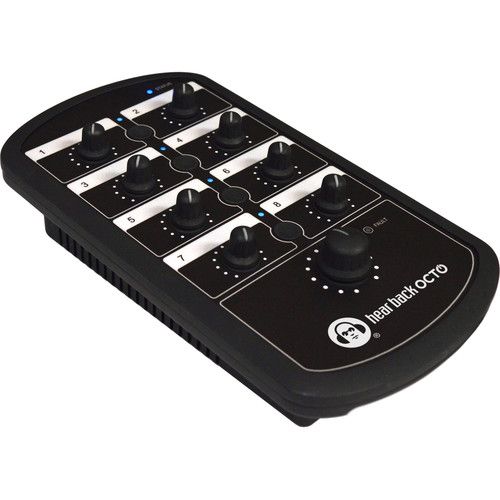

The Hear Technologies Hear Back OCTO Mixer is a personal monitor mixer designed to provide simple multi-source mixing and low system latency for musicians, vocalists, and various performers in recording studios, rehearsal spaces, and live stage applications. It receives power and signal via a Cat5e connection to a Hear Back OCTO Hub (available separately) and features an integrated 5/8"-27 threaded socket for easy mounting to a mic stand.

The ten-channel mixer accepts eight channels via Cat5e and two channels via the 1/8" stereo aux input jack. Adjacent mono channels can be linked for stereo operation using the capacitive touch link buttons. Volume is adjustable for each channel and a dedicated master output knob allows for quick control of the headphone level. 24-bit D/A conversion delivers high-quality signal to the 1/8" and 1/4" stereo headphone jacks and the two 1/4" balanced line outs. LEDs are provided for indication of headphone amplifier fault, channel link, and bus status.

Key Features:

• Mix up to eight channels via Cat5e input and two channels via stereo aux input
• 1/8" stereo aux input for click track or mix from other modules
• System latency less than 1.5 ms
• Mono inputs can be linked for stereo operation
• Two 1/4" balanced line outputs for connection to external monitors or other personal mixers
• Per-channel level controls and master volume
• LED indicators for headphone amplifier fault, link, and bus status
• Built-in 5/8"-27 thread for easy mounting to a mic stand
• Connects to Hear Back OCTO Hub (available separately) via Cat5e
