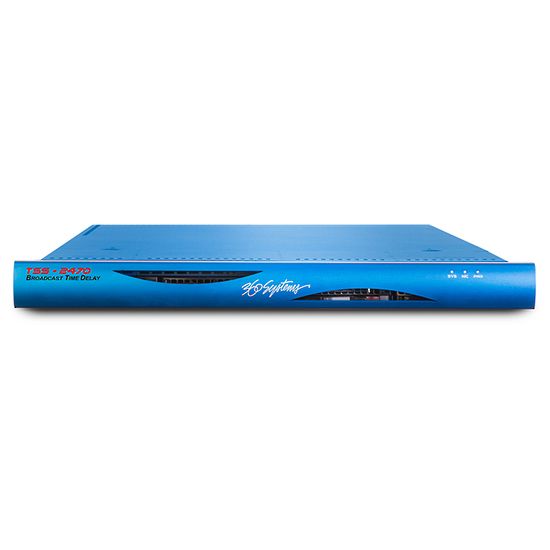

360 Systems TSS-2470 Broadcast Time Delay

POA
Stock Code:
04170
Enquire for ETA

Description

360 Systems’ newest broadcast time delay provides adjustable time delays from 30 seconds to 40 hours in HD or up to 80 hours SD. Outstanding image quality, high reliability, and attractive pricing have made the 360 Systems’ time delay products the preferred choice worldwide.

Single channel delay server.
Delays from 30 seconds to 40 hr HD (80 hrs SD)
HD-SDI or SD-SDI I/O
16 channels of embedded audio
Encodes any 6 VANC lines
RAID 5 protection of content
Single-frame time adjustment
Small 1U form factor, attractively priced
A Global Standard for Time Shifting
The TSS-2470 is 360 Systems latest model of Broadcast Time Delay, offering HD and SD compatibility and frame accurate delay. Built with RAID 5 storage, redundant critical components and a space saving 1U chassis, the TSS-2470 maintains the quality and reliability customers expect from 360 Systems.

With its set-and-forget user interface, time zone differences can be easily compensated for without the need for manual recording and rebroadcasting. Simply enter the desired delay time and click run. The input feed is automatically delayed the set amount of time without any further user inputs required.

The TSS-2470 supports formats in 720p and 1080i, at 29.97/59.94 and 25/50 Hz and NTSC/PAL along with sixteen embedded audio channels. Because the TSS-2470 transports high-value program content, it employs a four-drive, RAID 5 disk array for enhanced reliability. Drives are easily replaced from the front, without removing the time delay from a rack. With its 1U form factor, power consumption is low, and forced-air cooling extends component life and reliability.

The TSS-2470 features high-quality 10 bit video with up to 16 channels of embedded audio and support for closed captions and other VANC data. A live feed monitor output and frame accurate delay from 30 seconds to more than 40 hours round out an excellent standard feature set.

Key Features:

• HDSDI, SDSDI compatibility
• Configurable for 29.97/59.94 or 25/50 fps operation
• Frame accurate delay from 30 sec. to 40 hrs.
• Closed caption / VANC data support
• High quality 10 bit video and 24 bit audio support
• Up to 16 channels of embedded audio
• Intuitive graphical interface
• Simple set and forget design
• Redundant cooling and power
• RAID 5 protected storage
• Space saving 1U chassis design
• Live feed monitor and delayed outputs
• Dependable Linux® based OS
