A-Designs MIX FACTORY - Analog Summing

Price:
$6,965.00 (excl. GST)
Stock Code:
87385
Enquire for ETA

Description

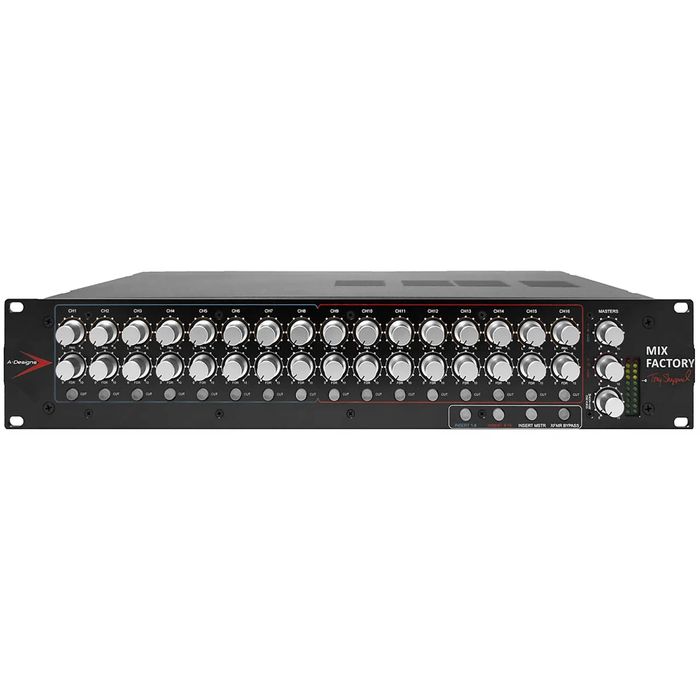

The Mix Factory from A-Designs is a 2 RU, 16-channel, solid-state summing mixer designed to impart analog tone when combining signals sent from a DAW, making it ideal for mix engineers who want to use a "hybrid" (digital and analog) mixing workflow.

Each of the Mix Factory's 16 channels offers controls for gain, pan, and mute. Each channel's mute switch has an audio-sensitive LED that glows green when signal is present. The 16 channels are summed to two stereo groups (1-8 Sum and 9-16 Sum), then sent to the main stereo bus. Gain controls are provided for each stereo group and the master stereo bus. 10-segment LED meters for the stereo bus allow you to keep track of your output levels.

The Mix Factory features custom-made Cinemag output transformers that can be switched in or out of the mix bus. This provides a significant tonal change at the push of a button. Integration of outboard compressors and equalizers is simple, due to the XLR insert points for the two groups and main stereo mix. Insert switches are provided for easy A/B comparison.

There are 16 balanced analog line inputs via two DB-25 connectors. All outputs are balanced, analog line level on XLR jacks. Main outputs are available pre- and post-master gain. Connect the pre-master outputs to your monitoring system. Record the post-master outputs to print the mix.

The Mix Factory offers a stereo external input for linking multiple summing mixers. The included external power supply is switchable, enabling use around the world.


Key Features:

  • Solid-state design with selectable custom-made Cinemag output transformers

  • 16 inputs via two DB-25 connectors

  • All outputs are balanced, analog line level on XLR connectors

  • Two stereo groups (1-8 Sum and 9-16 Sum) and main stereo mix output

  • Insert points are available for the two stereo groups and the main stereo mix

  • Pre-master stereo outputs for monitoring purposes

  • Post-master stereo outputs for recording purposes

  • Custom-made Cinemag output transformers are selectable via a front-panel switch

  • Each channel offers gain, pan, and mute controls

  • Each channel’s mute switch features an audio-sensitive LED that glows green when signal is present

  • 10-segment LED meters for the stereo output

  • Gain controls for groups (1-8 Sum and 9-16 Sum) and main stereo output

  • 2 RU

  • External input for linking multiple summing mixers

  • Switchable external power supply can be used internationally
