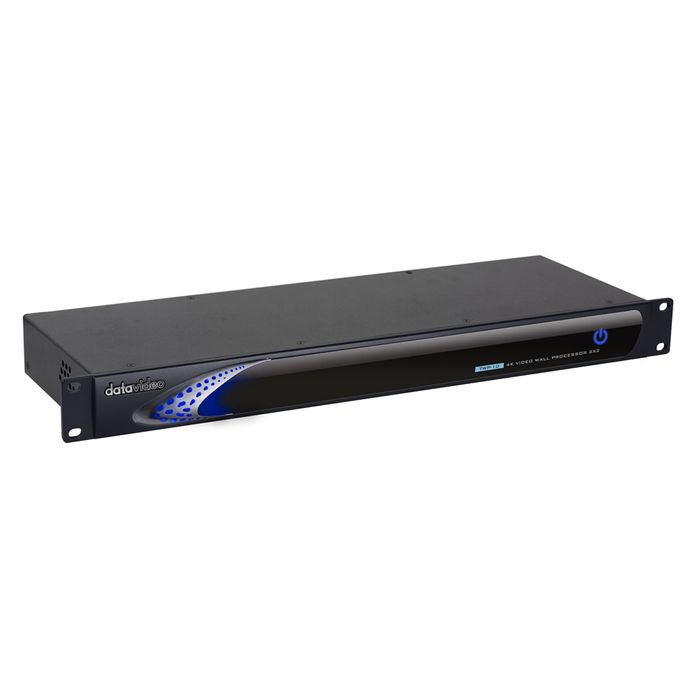

Datavideo TWP-10 4K Video Wall Processor 2x2

Price:
$2,873.00 (excl. GST)
Stock Code:
142988
Enquire for ETA

Description

The TWP-10 4K Video Wall Processor is a powerful, cost effective, and real time processor for multiple flat panel displays. Many display configurations can be possible with the control software. The TWP-10 allows users to input HDMI video up to 4K2K@60Hz 4:4:4. The embedded scaler converts signals from the HDMI source to match the original resolution of monitors, flat panel displays, projectors, and user-selectable output settings up to Widescreen Ultra Extended Graphics Array (WUXGA 1920x1200).

Key Features:

• Four HDMI outputs with resolution from 720x480 to 1920x1200
• Supports HDMI input from 1280x720 to 4K2K@60 (YUV 4:4:4), interlaced or progressive
• HDCP compliant
• Image parameters and layouts are automatically saved in flash memory of the device and can be recalled for later use
• Several image parameters and layouts can be saved in computers and loaded for later use
• Firmware upgradable for new features and technology enhancements
• Software control through USB and Ethernet
• Resize, position, zoom for each HDMI output video
• User-selectable output settings, up to 1920x1200
• Supports input rotation at the resolution up to 1080p
• 4K2K60 (YUV 4:4:4) can be divided and displayed on four 1080p60 TVs (2x2 layout only)
