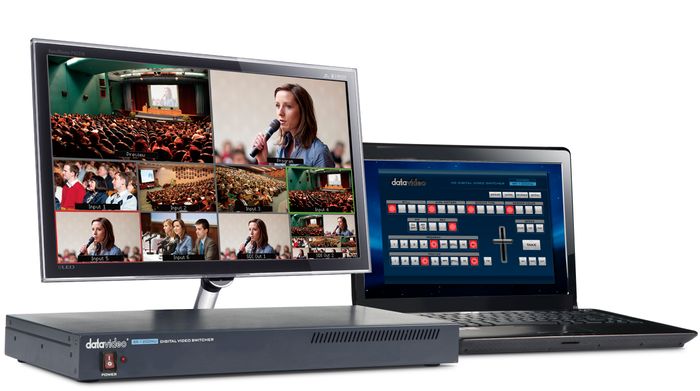

Datavideo SE-1200MU 6 Input Rackmount HD Switcher
Datavideo SE-1200MU 6 Input HD Digital Video Switcher is a small, portable, computer controlled switcher. Designed to be controlled using the front panel buttons, RS-422, or via a computer. An optional monitor is required to view your output. The unit supports 1080i and 720p video via 4 HD-SDI inputs and 2 HDMI inputs, with the HDMI inputs supporting computer signals. The SE-1200MU has 2 HD-SDI outputs and 2 assignable HDMI multi-view outputs. In terms of audio, there are 2 XLR mono inputs (1 stereo pair) and the switcher supports audio embedding of analog audio. The switcher supports Luma and linear keying with 2 downstream keyers, and has built-in effects including fade to black, straight cut, and 32 wipes with border. The internal frame synchronizer allows you to use consumer cameras with HDMI output and computers as input sources while making straight cuts without having the image jump, or requiring a fade to black. As you would expect with a switcher, this unit supports Tally indication on the multi-view output. 6-Input high definition switcher 1RU rackmountable processing unit 4 x HD-SDI and 2 x HDMI inputs Re-configurable inputs 2 x HD-SDI outputs 2 x Assignable HDMI outputs for dual multi-view screens 32 Wipe effects with border options Multi-view output Cross point assignment PC remote control Tally output 12 VDC operation voltage.
• 6-Input High Definition Switcher
• 1080i / 720p Compatible
• 4 x HD-SDI and 2 x HDMI Inputs
• Multi-view output
