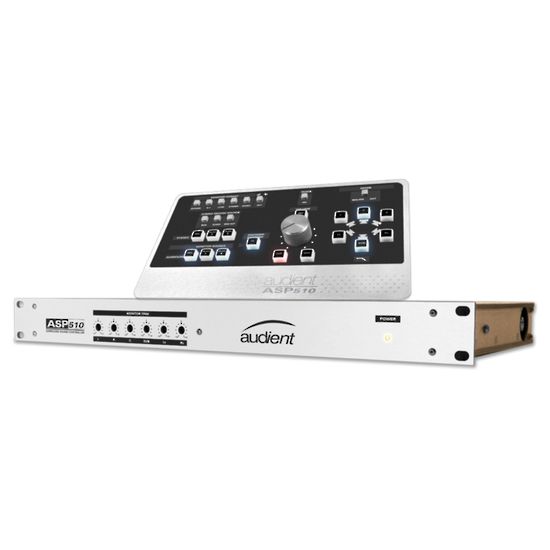

Audient ASP-510 Surround Sound Controller

Stock Code:
Enquire for ETA


The ASP510 from Audient is an easy-to-use controller designed for seamless integration with your console or DAW-based surround monitoring setup to provide full control of recording and monitoring functions in a variety of formats, including Dolby Surround and DTS. Perfect for use in surround music, film, video, and gaming production applications, the ASP510 supports three 5.1 surround and three stereo sources on DB25 connectors. The main unit has front-panel level controls for each of the six output channels, but most of the system control falls to the included remote.

The desktop remote unit, which connects to the main rack unit via a standard CAT5 cable, offers a plethora of control buttons for monitor format selection, stereo and surround source selection, cut and isolate functions for individual speakers, and more. A single knob is provided for main volume control. Other features of the system include an internal pink noise generator, a switchable 120Hz filter, and direct input of a guide track to the left and right monitors.

Key Features:

• 6 Preset Monitor Formats
• Supports three 5.1 Surround and three Stereo Formats
• 8 Inputs from Console ( 5.1 SURROUND plus STEREO)
• 8 Outputs to Recorders ( 5.1 SURROUND plus STEREO)
• Switchable ENCODER/DECODER Insertion
• 6 Speaker Outputs, each with Level Trims
• Individual Speaker CUT/ISOLATE Functions
• Universal Console Solo and Monitor System Interface
• User Definable Monitor REFERENCE and DIM Levels
• Internal Pink Noise Generator
• Guide Track Input
• Ergonomic Control Surface

What's Included?

• Audient ASP510 - Rack Mountable Surround Sound Controller
• ASP510 Rack Unit
• ASP510 Remote Control
• AC Power Cord
• CAT5 Cable
