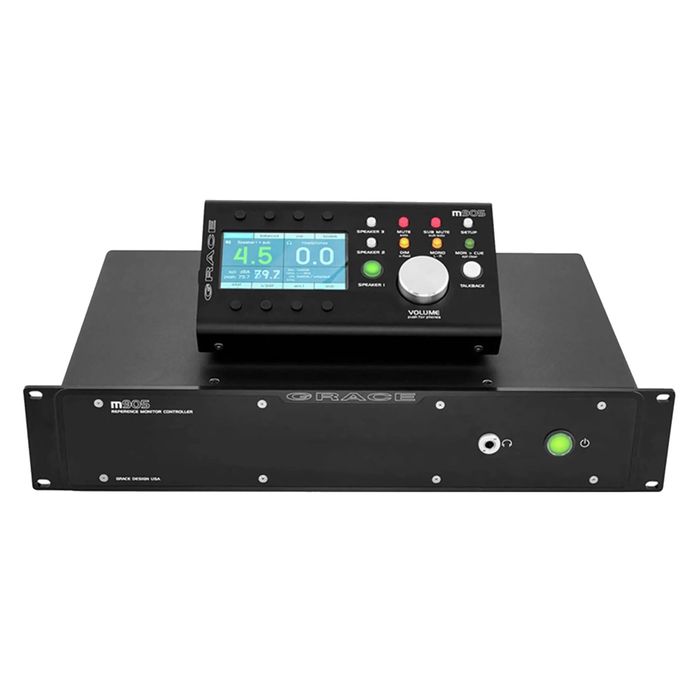

Grace Design m905 Monitor Control System with Remote - Silver & Black
  • Grace Design m905 Monitor Control System with Remote - Silver & Black
  • Grace Design m905 Monitor Control System with Remote - Silver & Black
  • Grace Design m905 Monitor Control System with Remote - Silver & Black
  • Grace Design m905 Monitor Control System with Remote - Silver & Black
  • Grace Design m905 Monitor Control System with Remote - Silver & Black
  • Grace Design m905 Monitor Control System with Remote - Silver & Black

Grace Design m905 Monitor Control System with Remote - Silver & Black

$8,147.00 (excl. GST)
$8,147.00 (excl. GST)
Stock Code:
39093
Stock Code:
151603
Stock Level
Enquire for ETA
Enquire for ETA
Enquire for ETA

Add To Cart

Unavailable for Online Purchase
Unavailable for Online Purchase

Description

The Grace Design m905 represents a new benchmark for audio playback quality. DAC performance is on par with the finest esoteric mastering equipment available. The redesigned s-Lock PLL ensures ultra-low jitter clock regeneration. An asynchronous USB class 2 interface allows the m905 to act as the master clock of the computer’s USB audio buss, effectively eliminating interface induced jitter for computer audio playback. And finally, meticulous analog circuitry measures with outstanding numbers in dynamic range, distortion and noise performance, ensuring bracingly open, detailed and musical playback of any input source.

All main audio and power supply circuitry is housed in a 2U rack mount mainframe, while system control is managed by a sleek, ergonomic remote control unit. This new RCU is a combination of dedicated hardware and a color graphical LCD display. All primary monitoring features are accessed via hardware switches and a rotary encoder, while all system information is presented by the graphic LCD and illuminated switches. This hybrid design allows for the solid feel and function of traditional hardware with the added power and functionality of a graphical user interface.

Now supported is DSD 128x (5.6448MHz) via DoP v1.1 (DSD over PCM frames). DSD audio can be sourced from the AES3, S/PDIF or USB digital inputs. While still a niche playback format, DSD has held its ground over the years, and now more and more content is available via download. And playback is now supported by a number of players. DSD sounds stunningly natural, especially rendered through the rest of the playback circuitry of the m905. So If you’re the type to seek out this kind of fidelity, the m905 is a great way to enjoy it.

KEY FEATURES:

  • Analog inputs – unbalanced (standard or the optional RIAA phono input), balanced (2nd pair balanced available on m905 Analog), CUE, talkback mic

  • Digital inputs – 2x AES3 (Single or dual-wire), 1 S/PDIF, 1 TOSLINK, ADAT (selectable in 4 pairs, or 2 pairs in S/MUX), USB, DSD128 (5.6448MHz)

  • Audio circuitry designed for completely transparent and musical playback performance

  • Asynchronous Class 2 USB playback supports up to 24 bit/192kHz

  • Mastering quality DAC circuitry with configurable de-emphasis filtering

  • s-lock dual-stage Phase Lock Loop for ultra low jitter clock regeneration

  • Hybrid RCU with hardware switches, large level encoder and graphical LCD

  • LCD display shows input, level, output, SPL and DAC status plus a full calibration menu

  • RCU includes built in microphone for talkback and onboard SPL meter

  • SPL meter features include level, peak, fast and slow modes, A & C weighting

  • Precision .5 dB step level control for speakers and headphones

  • Reference headphone amplifier circuitry, with outputs on both the RCU and ACU

  • Dedicated mono, dim, mute and sub mute switches

  • Digital loop thru outputs that can be configured to pass incoming digital signals or as a digital speaker output when monitoring digital PCM sources

  • Mono mode can be set to L+R summed, L only in both channels, or R only in both channels L solo, R solo, L-R and sub solo modes are available

  • 3 available stereo speaker outputs, with two assignable mono sub outputs (or single stereo sub output)

  • Multi-mode SUB/ DAC/ METER out

  • SUB out mode for stereo or multiple mono subwoofer outputs

  • DAC out mode for a fixed DAC output fed by the selected digital input

  • METER out mode fed by selected input signal (digital or analog), configurable with a fixed level or to follow the monitor level

  • Detachable RCU tilt base
