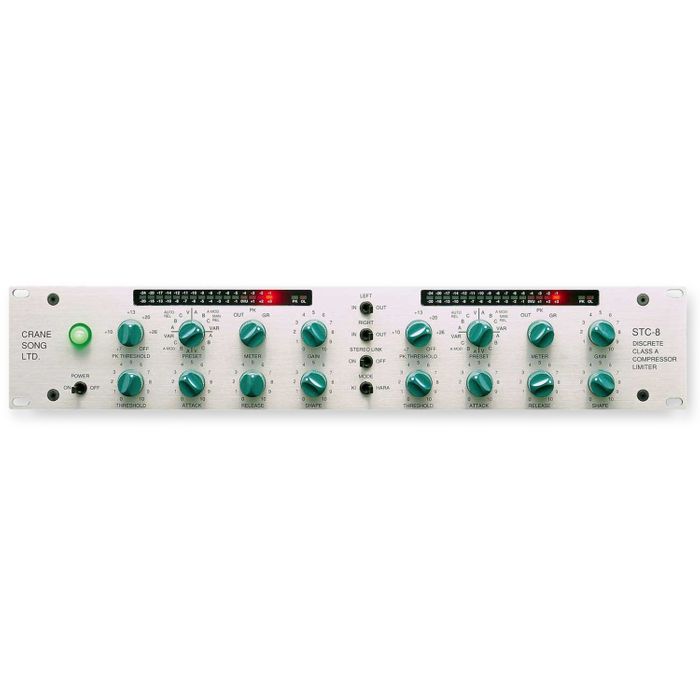

Crane Song STC-8 Compressor Limiter
Description
Discontinued, page for reference only
The Crane Song STC-8 is a high quality stereo compressor combined with a remarkably dependable peak limiter, providing overload protection critical to digital recording and broadcast transmitters. The STC-8's compressor is engineered to provide musically transparent gain KI & HARA Sounds control, but is also capable of emulating vintage equipment and creating distinctive new sounds.
In addition, a switchable enhancement circuit creates analog and tube like warmth to enrich lifeless audio and digital recordings. This vast flexibility is simplified by the inclusion of several optimized presets, allowing fast, easy set-optimized pre-setsup on a wide variety of sounds. It can operate in true stereo or discrete independent mono, accessible by a front panel switch.
The STC-8's sophisticated side-chain allows both compression and peak limiting to take place simultaneously, using the same proprietary gain circuit. High signal quality is maintained by utilizing a discrete class A audio path, and by eliminating any VCA or optical gain control elements.
The STC-8 requires two rack spaces. All inputs and outputs are transformerless and balanced. The toroidal power transformer is UL approved and allows four line voltages for international use.
The STC-8 delivers consistent gain control without sacrificing musical definition or harmonic richness.
Key Features:
• Class A audio circuit / no use of VCAs
• Soft knee characteristic
• Attack modification (A-Mod)
• Program-dependent control of the return times
• Dynamic response time modification and program dependent return times can be used independently or in combination
• Rotary switch with 4 positions of which three presets
• Switchable enhancement circuit generates harmonic distortion
• Inputs and outputs are electronically balanced, as are the side-chains
• Dimensions: 19" x 3.5" (2U)
Avaialble Versions:
• STC-8 - Stereo Compressor Limiter with analog presets
• STC-8/H - STC-8 w/ detented gain pots
• STC-8/M - Mastering Compressor Limiter w/ detented switches
