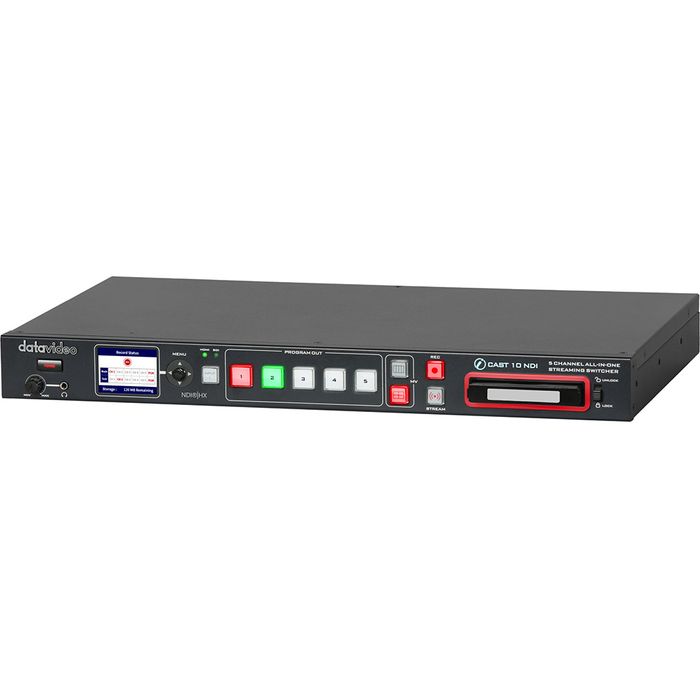

Datavideo iCast 10NDI 5-Channel Streaming Switcher

Price:
$5,568.00 (excl. GST)
Stock Code:
149991
Enquire for ETA

Description

Produce Hybrid Events Using an All-in-one Switcher

iCAST 10NDI is a new and innovative live production equipment that houses a switcher, camera controller and streaming encoder in one box. A variety of inputs can be connected to iCAST 10NDI to allow you to create an eye catching presentation with different video sources, such as PTZ and document cameras, and a laptop for your presentation slides.

Using the built-in streaming encoder and recorder. You can easily live stream to multiple platforms and record your show to an SD card. Six video channels can be ISO recorded at the same time in order to provide you with more program materials for post production.

iCAST 10NDI is definitely a highly efficient and easy-to-use solution for video streaming and recording.

Features:


  • Seamless switching

  • Multichannel audio mixing

  • Video Streaming

  • Multi-Camera Video Recording

  • Character Generation

  • System Control


Multiple PGM Modes:
The iCAST 10NDI offers five Multiview layouts to allow you to show your input videos all at the same time. The videos can be streamed to all corners of the world and your audience can, with zero delay, participate in your events using a receiver/decoder, personal mobile device, or a computer.

Decode up to 3 NDI channels using one Ethernet Cable with NDIĀ® | HX Technology.

Vertical streaming appropriate for video playback on social media:
Of all videos streamed, up to 50% of the videos are viewed on mobile devices and 94% of the mobile users hold the phone vertically to view the video. iCAST 10NDI provides vertical streaming which can be generated with only a few basic settings including auto cropping and image rotation.

Supports SRT protocol so that iCAST 10NDI works well even when you have low bandwidth:
Video latency often results when there is insufficient network bandwidth. iCAST-10 supports SRT protocol which mitigates packet loss when the network becomes unstable. Sometimes RTMP may give you stuttering viewing experience but SRT will solve your problem.

ISO recording of five video inputs and one main program output:
ISO recording refers to the ability to create isolated recordings of your five camera inputs and one PGM output for video backup and adding visual effects during post production. ISO recording allows you to save your data locally or on a file server.

Multi-Channel Audio Mixing and Audio-to-Video Synchronization:
In addition to embedded audio, we have also provided input ports for external audio such as XLR port for connecting microphones, and RCA terminals for audio players.
The Web audio, the most popular audio source, is another external audio source. You can easily perform professional audio mixing with iCAST 10NDI and at the same time switch between AES and EBU modes so that your output audio will always be compatible with various audio systems in different countries without issues such as unstable audio volume and the audio and video out of sync error.

Character Generation:
iCAST 10NDI allows you to add graphic elements such as logos, titles, text, and images to any input video channels or the program output. You can add course chapters text or workflow diagram images to your program.



View the PDF for full specifications
